MBI5026

16-bit Constant Current LED Sink Driver, 7.0 V, 90 mA, 25 MHz, SOP24

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~49.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.30~49.00

PartNumber:: MBI5026

Brand:: Mimix Broadband - MBI | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. mona cao's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-19

From Other Seller

Part Number:MBI5026
US $0.30 - 49.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
STK795-810

US $12.00 - 16.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

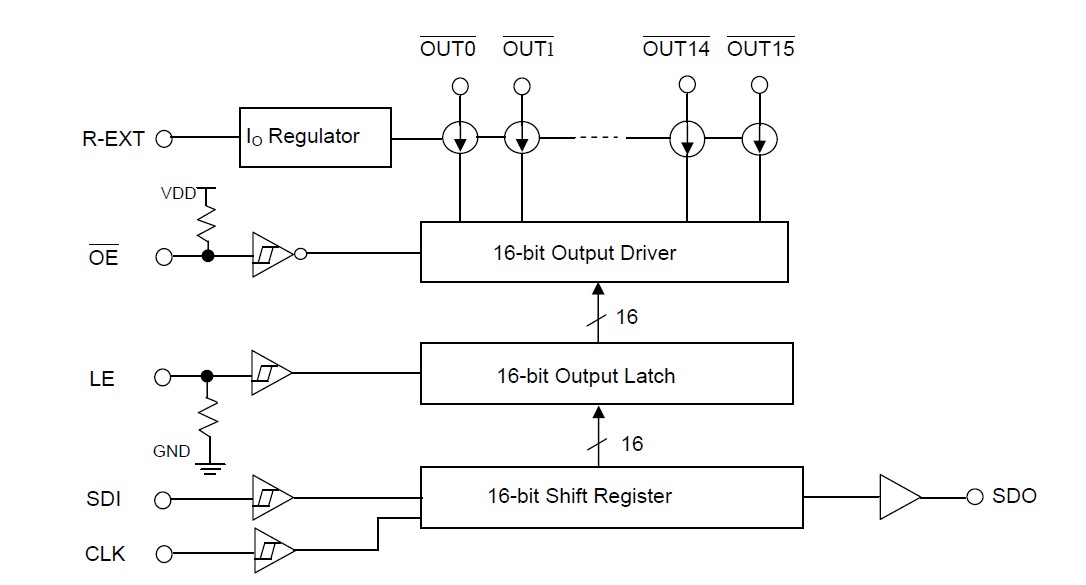

The MBI5026 is a 16-bit Constant Current LED Sink Driver. The MBI5026 is designed for LED displays. As an enhancement of its predecessor, the MBI5026 exploits PrecisionDrive technology to enhance its output characteristics. The MBI5026 contains a serial buffer and data latches which convert serial input data into parallel output format. At MBI5026 output stage, sixteen regulated current ports are designed to provide uniform and constant current sinks for driving LEDs within a large range of Vf variations. MBI5026 provides users with great flexibility and device performance while using MBI5026 in their system design for LED display applications, e.g. LED panels. Users may adjust the output current from 5 mA to 90 mA through an external resistor, Rext, which gives users flexibility in controlling the light intensity of LEDs. The MBI5026 guarantees to endure maximum 17V at the output port. The high clock frequency, 25 MHz, also satisfies the system requirements of high volume data transmission.

Parametrics

MBI5026 absolute maximum ratings: (1)Supply Voltage VDD: 0~7.0 V; (2)Input Voltage VIN: -0.4~VDD + 0.4 V; (3)Output Current IOUT: +90 mA; (4)Output Voltage VDS: -0.5~+20.0 V; (5)Clock Frequency FCLK: 25 MHz; (6)GND Terminal Current IGND: 1440 mA; (7)Operating Temperature Topr: -40~+85 ℃; (8)Storage Temperature Tstg: -55~+150 ℃.

Features

MBI5026 features: (1)16 constant-current output channels; (2)Constant output current invariant to load voltage change; (3)Excellent output current accuracy: between channels: <±3% (max.), and between ICs: <±6% (max.); (4)Output current adjusted through an externaresistor; (5)Constant output current range: 5-90 mA; (6)Fast response of output current, OE (min.): 200 ns; (7)25MHz clock frequency; (8)Schmitt trigger input; (9)5V supply voltage.
