Product Summary
The MBI1828 is an instant On/Off LED driver for lighting applications and exploits PrecisionDrive technology to enhance its output characteristics. At the MBI1816 output stage, sixteen regulated current ports are designed to provide uniform and constant current sinks for driving LEDs within a large range of VF variations. The MBI1828 provides users 16-channel constant current ports to match LEDs with equal current. The applications of the MBI1816 include Automotive Interior Lighting, Channel Letter, Decoration Lighting.
Parametrics
MBI1828 absolute maximum ratings: (1)Supply voltage, VDD: 0 to 7V; (2)Input voltage, Vin: -0.4 to VDD +0.4V; (3)Output current, Iout: 1440mA; (4)Sustaining voltage, VDS: -0.5 to 17V; (5)GND terminal current, IGND: 1440mA; (6)Power dissipation, PD: 1.6W; (7)Operating temperature, Topr: -40 to 85℃; (8)Operating junction temperature, Tj: 125℃; (9)Storage temperature, Tstg: -55 to 150℃.
Features
MBI1828 features: (1)16 constant-current output channels; (2)Constant output current invariant to load voltage change; (3)Excellent output current accuracy: between channels: <±3% (max.), and between ICs: <±6% (max.); (4)Output current adjusted through an external resistor; (5)Constant output current range: 5-90 mA; (6)Fast response of output current,OE (min.): 10μs; (7)Schmitt trigger input; (8)5V supply voltage; (9)Package Type: TSSOP20 with thermal pad.

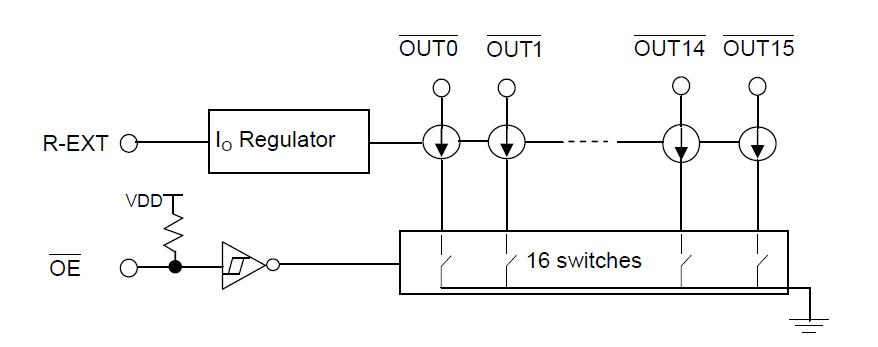

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MBI1828 |
Other |
|
Data Sheet |
Negotiable |
|
||||
