Product Summary

The MAX8815A DC-DC step-up converter is a high-efficiency,
low quiescent current, synchronous step-up
converter with True Shutdown? and inrush-current limiting.
The MAX8815A generates any output voltage
from 3.3V to 5V from a 2-cell NiMH/NiCd or a single-cell
Li+/Li polymer battery.

Features

? Up to 97% Efficiency with Internal Synchronous
Rectifier
? Low 30μA Quiescent Current
? Guaranteed 500mA Output Current at VOUT = 5V
from 1.8V Input
? Guaranteed 1A Output Current at 5V from 2.5V
Input
? Low-Noise Constant Frequency Operation (FPWM
Mode)
? 2MHz PWM Switching Frequency
? Preset (5V) or Adjustable Output
? Controlled Current in Soft-Start Limits Inrush
Current
? True Shutdown
? Internal Compensation
? Overload/Short-Circuit Protection
? 0.1μA Shutdown Current

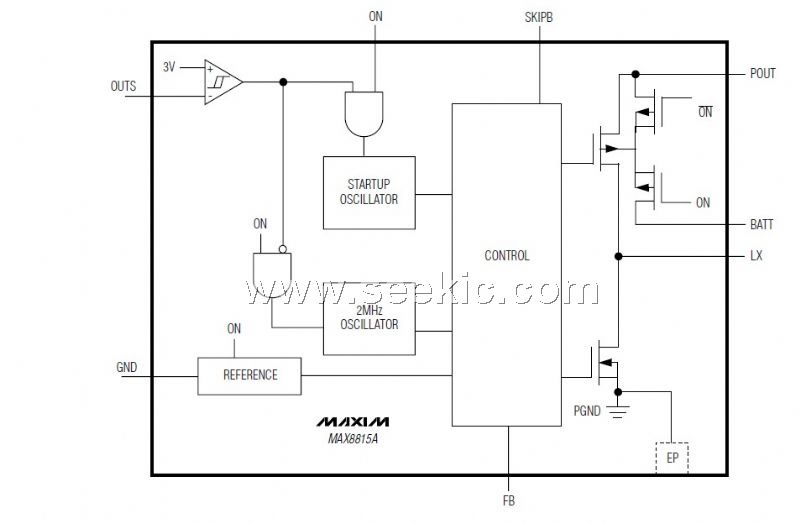

Diagrams
