MAX7456EUI+T

Product Summary

The MAX7456EUI+T is a single-channel monochrome on-screen display (OSD) generator. It lowers system cost by elimi- nating the need for an external video driver, sync separator, video switch, and EEPROM. The MAX7456EUI+T serves all national and international markets with 256 user-pro- grammable characters in NTSC and PAL standards. The MAX7456EUI+T easily displays information such as company logo, custom graphics, time, and date with arbitrary characters and sizes. The MAX7456EUI+T is preloaded with 256 characters and pictographs and can be reprogrammed in-circuit using the SPI port. The applications are Security Switching Systems, Security Cameras, Industrial Applications, In-Cabin Entertainment, Consumer Electronics.

Parametrics

MAX7456EUI+T absolute maximum ratings: (1)AVDD to AGND: -0.3V to +6V; (2)DVDD to DGND: -0.3V to +6V; (3)PVDD to PGND: -0.3V to +6V; (4)AGND to DGND: -0.3V to +0.3V; (5)AGND to PGND: -0.3V to +0.3V; (6)DGND to PGND: -0.3V to +0.3V; (7)VIN, VOUT, SAG to AGND: -0.3V to (VAVDD + 0.3V); (8)HSYNC, VSYNC, LOS to AGND: -0.3V to +6V; (9)RESET to AGND: -0.3V to (VAVDD + 0.3V); (10)CLKIN, CLKOUT, XFB to DGND: -0.3V to (VDVDD + 0.3V); (11)SDIN, SCLK, CS, SDOUT to DGND: -0.3V to (VDVDD + 0.3V); (12)Maximum Continuous Current into VOUT: ±100mA; (13)Continuous Power Dissipation: 2162mW; (14)Operating Temperature Range: -40 to +85℃; (15)Junction Temperature: +150℃; (16)Storage Temperature Range: -60 to +150℃; (17)Lead Temperature (soldering, 10s): +300℃.

Features

MAX7456EUI+T features: (1)256 User-Defined Characters or Pictographs in Integrated EEPROM; (2)12 × 18 Pixel Character Size; (3)Blinking, Inverse, and Background Control Character Attributes; (4)Selectable Brightness by Row; (5)Displays Up to 16 Rows × 30 Characters; (6)Sag Compensation On Video-Driver Output; (7)LOS, VSYNC, HSYNC, and Clock Outputs; (8)Internal Sync Generator; (9)NTSC and PAL Compatible; (10)SPI-Compatible Serial Interface; (11)Delivered with Preprogrammed Character Set.

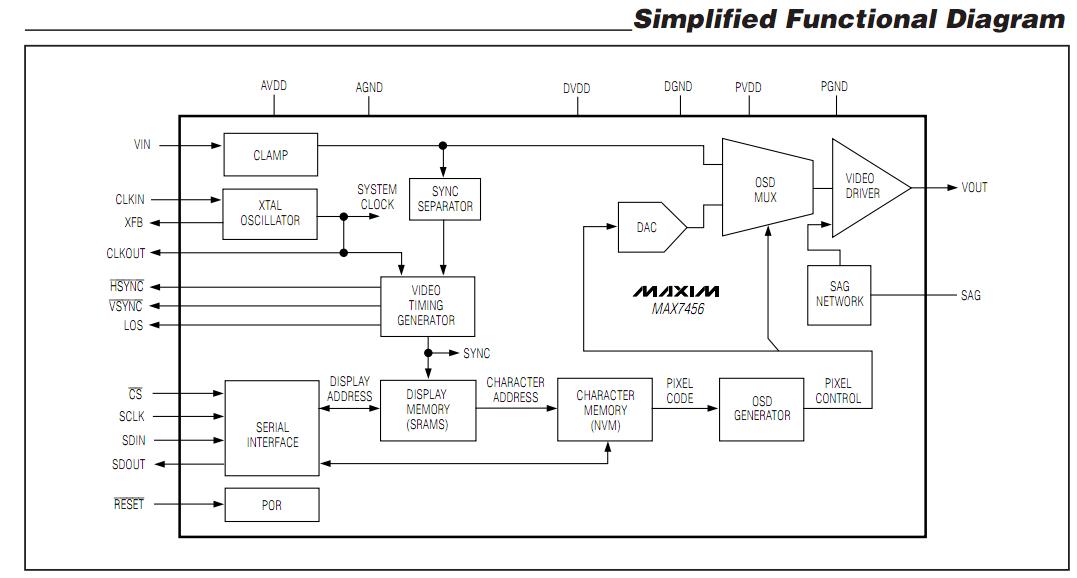

Diagrams
