MAX7219CWG

MAX7219CWG, serial input/output common-cathode display driver, SOIC, -0.3V to 6V, 500mA, Maxim Integrated Products

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.40~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1000 ~ 10000 :	0.45 / Piece
10000 ~ 100000 :	0.40 / Piece

PartNumber:: MAX7219CWG

Brand:: Maxim Integrated Products - Maxim | Pack: SOIC | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-27

From Other Seller

Part Number:MAX7219CWG
US $0.40 - 0.50
Quantity:

piece

Product Summary

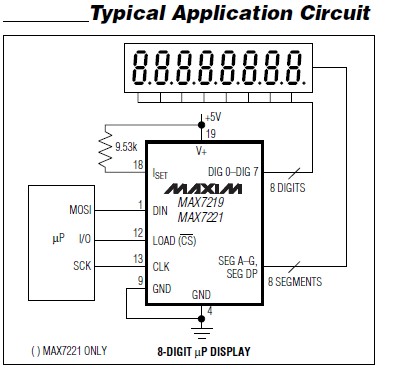

The MAX7219CWG is a compact, serial input/output common-cathode display driver that interfaces microprocessors (μPs) to 7-segment numeric LED displays of up to 8 digits, bar-graph displays, or 64 individual LEDs. Included on-chip are a BCD code-B decoder, multiplex scan circuitry, segment and digit drivers, and an 8x8 static RAM that stores each digit. Only one external resistor is required to set the segment current for all LEDs. The MAX7219CWG also allows the user to select code-B decoding or no-decode for each digit. It includes a 150μA low-power shutdown mode, analog and digital brightness control, a scanlimit register that allows the user to display from 1 to 8 digits, and a test mode that forces all LEDs on.

Parametrics

MAX7219CWG absolute maximum ratings: (1)Voltage (with respect to GND): V+: -0.3V to 6V; DIN, CLK, LOAD, CS: -0.3V to 6V; All Other Pins: -0.3V to (V+ + 0.3V); (2)Current: DIG0–DIG7 Sink Current: 500mA; SEGA–G, DP Source Current: 100mA; (3)Continuous Power Dissipation (TA = +85℃): Narrow Plastic DIP (derate 13.3mW/℃; (4)above +70℃): 1066mW; Wide SO (derate 11.8mW/℃ above +70℃): 941mW; Narrow CERDIP (derate 12.5mW/℃ above +70℃): 1000mW; (5)Operating Temperature Ranges (TMIN to TMAX): 0℃ to +70℃; (6)Storage Temperature Range: -65℃ to +160℃; (7)Lead Temperature (soldering, 10s): +300℃.

Features

MAX7219CWG features: (1)10MHz Serial Interface; (2)Individual LED Segment Control; (3)Decode/No-Decode Digit Selection; (4)150μA Low-Power Shutdown (Data Retained); (5)Digital and Analog Brightness Control; (6)Display Blanked on Power-Up; (7)Drive Common-Cathode LED Display; (8)24-Pin DIP and SO Packages.
