MAX706ESA

MAX706ESA, microprocessor (μP) supervisory circuit, SOIC, -0.3V to 6.0V, 20mA, Maxim Integrated Products

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.40~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1000 ~ 10000 :	0.45 / Piece
10000 ~ 100000 :	0.40 / Piece

PartNumber:: MAX706ESA

Brand:: Maxim Integrated Products - Maxim | Pack: SOIC | D/C: 13+

Availability:: Supply Ability: 1000000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-26

From Other Seller

Part Number:MAX706ESA
US $0.40 - 0.50
Quantity:

piece

Product Summary

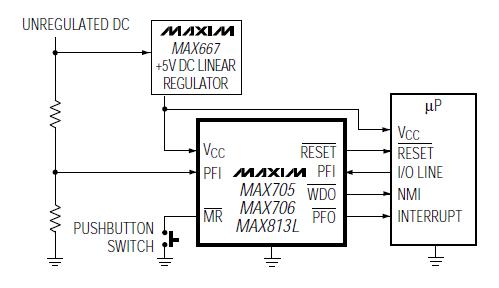

The MAX706ESA is a microprocessor (μP) supervisory circuit reduces the complexity and number of components required to monitor power-supply and battery functions in μP systems. The device significantly improves system reliability and accuracy compared to separate ICs or discrete components. The applications of the MAX706ESA include Computers, Controllers, Intelligent Instruments, Automotive Systems, Critical μP Power Monitoring.

Parametrics

MAX706ESA absolute maximum ratings: (1)Terminal Voltage (with respect to GND), VCC: -0.3V to 6.0V; (2)All Other Inputs: -0.3V to (VCC + 0.3V); (3)Input Current, VCC: 20mA; GND: 20mA; (4)Output Current (all outputs): 20mA; (5)Continuous Power Dissipation; (6)Plastic DIP (derate 9.09mW/℃ above +70℃): 727mW; (7)SO (derate 5.88mW/℃ above +70℃): 471mW; μMAX (derate 4.10mW/℃ above +70℃): 330mW; CERDIP (derate 8.00mW/℃ above +70℃): 640mW.

Features

MAX706ESA features: (1)μMAX Package: Smallest 8-Pin SO; (2)Guaranteed RESET Valid at VCC = 1V; (3)Precision Supply-Voltage Monitor, 4.65V in MAX705/MAX707/MAX813L; 4.40V in MAX706/MAX708; (4)200ms Reset Pulse Width; (5)Debounced TTL/CMOS-Compatible Manual-Reset Input; (6)Independent Watchdog Timer—1.6sec Timeout (MAX705/MAX706); (7)Active-High Reset Output (MAX707/MAX708/MAX813L); (8)Voltage Monitor for Power-Fail or Low-Battery Warning.
