MAX4820

MAX4820, +3.3V/+5V, 8-Channel, Cascadable Relay Driver, TSSOP, 300mA, -0.3 to 6V, Maxim Integrated Products

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: MAX4820

Brand:: Maxim Integrated Products - Maxim | Pack: TSSOP | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-26

From Other Seller

Part Number:MAX4820
US $0.30 - 0.50
MAX4820EUP

US $2.10 - 2.10 / Piece
(0) Remove
Quantity:

piece

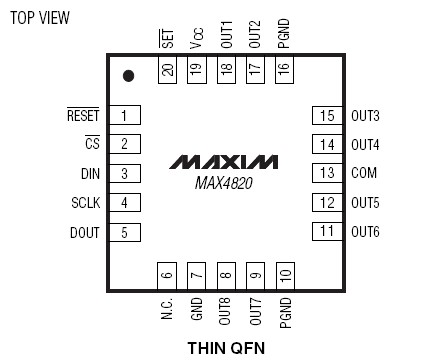

Product Summary

The MAX4820 is a +3.3V/+5V, 8-Channel, Cascadable Relay Driver with Serial/Parallel Interface. The MAX4820 offers built-in kickback protection and drive +3.3V/+5V nonlatching or dual-coil-latching relays. The MAX4820 is especially useful when driving +3V relays. Each independent open-drain output features a 2Ω on-resistance and is guaranteed to sink 70mA (min) of load current. Both devices consume less than 50μA (max) quiescent current and have 1μA output off-leakage current. The applications of the MAX4820 include Central Office, ATE, DSL, ADSL Line Cards, Industrial Equipment, E1/T1 Redundancy.

Parametrics

MAX4820 absolute maximum ratings: (1)VCC, COM: -0.3V to +6.0V; (2)OUT: -0.3V to (VCOM + 0.3V); (3)CS, SCLK, DIN, SET, RESET, A0, A1, A2, LVL: -0.3V to +6.0V; (4)DOUT: -0.3V to (VCC + 0.3V); (5)Continuous OUT_ Current (all outputs turned on): 150mA; (6)Continuous OUT_ Current (single output turned on): 300mA; (7)Continuous Power Dissipation (TA = +70℃) 20-Lead Thin QFN (derate 16.9mW/°C above +70°C): 1350mW; (8)θJA: 59.3℃/W; (9)20-Pin TSSOP (derate 21.7mW/℃ above +70℃): 1739mW; (10)θJA : 46℃/W; (11)Operating Temperature Range: -40 to +85℃; (12)Junction Temperature: +150℃; (13)Storage Temperature Range: -65 to +150℃; (14)Soldering Temperature (10s): +300℃.

Features

MAX4820 features: (1)8 Independent Output Channels; (2)Built-In Inductive Kickback Protection; (3)Drive +3V and +5V Relays; (4)Guaranteed 70mA (min) Coil Drive Current; (5)SET Function to Turn On All Outputs Simultaneously; (6)RESET Function to Turn Off All Outputs Simultaneously; (7)SPI-/QSPI-/MICROWIRE-Compatible Serial Interface (MAX4820); (8)Serial Digital Output for Daisy Chaining (MAX4820); (9)Parallel Interface (MAX4821); (10)Low 50μA (max) Quiescent Supply Current; (11)Space-Saving 20-Pin Thin QFN Package.
