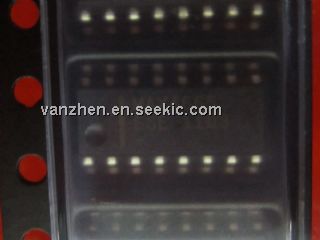

MAX4665ESE

MAX4665ESE, CMOS Analog Switch, SOIC, 842mW, 44V, Maxim Integrated Products

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.50~4.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	4.50 / Piece
100 ~ 1000 :	3.80 / Piece
1000 ~ 10000 :	3.50 / Piece

PartNumber:: MAX4665ESE

Brand:: Maxim Integrated Products - Maxim | Pack: SOIC | D/C: 13+

Availability:: Supply Ability: 100000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-08

From Other Seller

Part Number:MAX4665ESE
US $3.50 - 4.50
Quantity:

piece

Product Summary

The MAX4665ESE is a CMOS Analog Switch. The MAX4665ESE quad analog switches feature 5Ωmax on-resistance. On-resistance is matched between switches to 0.5Ωmax and is flat (0.5Ωmax) over the specified signal range. Each switch can handle Rail-to-Rail® analog signals. The off-leakage current is only 5nA max at +85℃. These analog switches are ideal in low-distortion applications and are the preferred solution over mechanical relays in automatic test equipment or in applications where current switching is required. They have low power requirements, require less board space, and are more reliable than mechanical relays.

Parametrics

MAX4665ESE absolute maximum ratings: (1)V+ to GND : -0.3V to +44V; (2)V- to GND : +0.3V to -44V; (3)V+ to V- : -0.3V to +44V; (4)VL to GND : (GND - 0.3V) to (V+ + 0.3V); (5)All Other Pins to DGND (Note 1) : (V- - 0.3V) to (V+ + 0.3V); (6)Continuous Current (COM_, NO_, NC_) : ±100mA; (7)Peak Current (COM_, NO_, NC_) (pulsed at 1ms, 10% duty cycle) : ±300mA; (8)Continuous Power Dissipation (TA = +70℃) Narrow SO (derate 8.70mW/℃ above +70℃) : 696mW; (9)Plastic DIP (derate 10.53mW/℃ above +70℃) : 842mW; (10)Operating Temperature Ranges : -40℃ to +85℃; (11)Storage Temperature Range : -65℃ to +150℃; (12)Lead Temperature (soldering, 10sec) : +300℃.

Features

MAX4665ESE features: (1)Low On-Resistance (5Ωmax); (2)Guaranteed RON Match Between Channels (0.5Ω max); (3)Guaranteed RON Flatness over Specified Signal Range (0.5Ω max); (4)Guaranteed Break-Before-Make (MAX4666); (5)Rail-to-Rail Signal Handling; (6)Guaranteed ESD Protection > 2kV per Method 3015.7; (7)+4.5V to +36V Single-Supply Operation ±4.5V to ±20V Dual-Supply Operation; (8)TTL/CMOS-Compatible Control Inputs.
