MAX3082ESA

MAX3082ESA, Slew-Rate-Limited RS-485/RS-422 Transceiver, SOIC, 7V, 727mW, Maxim Integrated Products

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.40~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1000 ~ 10000 :	0.45 / Piece
10000 ~ 100000 :	0.40 / Piece

PartNumber:: MAX3082ESA

Brand:: Maxim Integrated Products - Maxim | Pack: SOIC | D/C: 13+

Availability:: Supply Ability: 1000000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-26

From Other Seller

Part Number:MAX3082ESA
US $0.40 - 0.50
MAX3082ESA Drivers, Receivers, Transceivers

US $0.40 - 0.80 / Piece
(0) Remove
Quantity:

piece

Product Summary

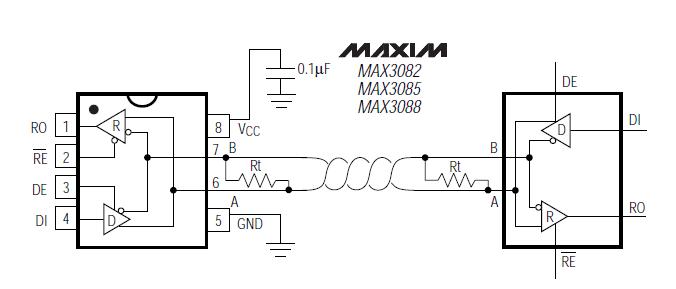

The MAX3082ESA is a high-speed transceiver for RS-485/RS-422 communication contain one driver and one receiver. The device features fail-safe circuitry, which guarantees a logic-high receiver output when the receiver inputs are open or shorted. This means that the receiver output will be a logic high if all transmitters on a terminated bus are disabled (high impedance). The applications of the MAX3082ESA include RS-422/RS-485 Communications, Level Translators, Transceivers for EMI-Sensitive Applications, Industrial-Control Local Area Networks.

Parametrics

MAX3082ESA absolute maximum ratings: (1)Supply Voltage (VCC): +7V; (2)Control Input Voltage (RE, DE): -0.3V to (VCC + 0.3V); (3)Special Input Voltage (H/F, SRL, TXP, RXP): -0.3V to (VCC + 0.3V); (4)Driver Input Voltage (DI): -0.3V to (VCC + 0.3V); (5)Driver Output Voltage (A, B, Y, Z): ±13V; (6)Receiver Input Voltage (A, B): ±13V; (7)Receiver Input Voltage, Full Duplex (A, B): ±25V; (8)Receiver Output Voltage (RO): -0.3V to (VCC + 0.3V).

Features

MAX3082ESA features: (1)True Fail-Safe Receiver While Maintaining EIA/TIA-485 Compatibility; (2)Enhanced Slew-Rate Limiting Facilitates Error-Free Data Transmission (MAX3080–MAX3085/MAX3089); (3)1nA Low-Current Shutdown Mode (except MAX3081/MAX3084/MAX3087); (4)Pin-Selectable Full/Half-Duplex Operation (MAX3089); (5)Phase Controls to Correct for Twisted-Pair Reversal (MAX3089); (6)Allow Up to 256 Transceivers on the Bus.
