MAX232DR

MAX232DR, dual driver/receiver, SOIC, -0.3 to 6V, 30V, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: MAX232DR

Brand:: Texas Instruments - TI | Pack: SOIC | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-17

From Other Seller

Part Number:MAX232DR
US $0.30 - 0.50
Quantity:

piece

Product Summary

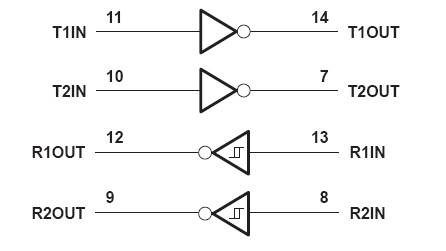

The MAX232DR is a dual driver/receiver that includes a capacitive voltage generator to supply TIA/EIA-232-F voltage levels from a single 5-V supply. Each receiver converts TIA/EIA-232-F inputs to 5-V TTL/CMOS levels. The MAX232DR has a typical threshold of 1.3 V, a typical hysteresis of 0.5 V, and can accept ±30-V inputs. Each driver converts TTL/CMOS input levels into TIA/EIA-232-F levels. The driver, receiver, and voltage-generator functions are available as cells in the Texas Instruments LinASIC library.

Parametrics

MAX232DR absolute maximum ratings: (1)Input supply voltage range, VCC: -0.3 V to 6 V; (2)Positive output supply voltage range, VS+: VCC . 0.3 V to 15 V; (3)Negative output supply voltage range, VS: -0.3 V to .15 V; (4)Input voltage range, VI: Driver: -0.3 V to VCC + 0.3 V; (5)Receiver: ±30 V; (6)Output voltage range, VO: T1OUT, T2OUT: VS- 0.3 V to VS+ + 0.3 V; (7)R1OUT, R2OUT: 0.3 V to VCC + 0.3 V; (8)Short-circuit duration: T1OUT, T2OUT: Unlimited; (9)Package thermal impendance: 73℃/W; (10)Operating virtual junction temperature, TJ: 150℃; (11)Storage temperature range, Tstg : -65 to 150℃.

Features

MAX232DR features: (1)Meets or Exceeds TIA/EIA-232-F and ITU Recommendation V.28; (2)Operates From a Single 5-V Power Supply With 1.0μF Charge-Pump Capacitors; (3)Operates Up To 120 kbit/s; (4)Two Drivers and Two Receivers; (5)±30-V Input Levels; (6)Low Supply Current : 8 mA Typical; (7)ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A); (8)Upgrade With Improved ESD (15-kV HBM) and 0.1- F Charge-Pump Capacitors is Available With the MAX202; (9)Applications: TIA/EIA-232-F, Battery-Powered Systems, Terminals, Modems, and Computers.
