Product Summary
The MAX202ECSE+T is a RS-232 Transceiver. The MAX202ECSE+T is designed for RS-232 and V.28 communications in harsh environments. Each transmitter output and receiver input is protected against ±15kV electrostatic discharge (ESD) shocks, without latchup. The various combinations of features are outlined in the Selector Guide. The MAX202ECSE+T for all ten devices meet all EIA/TIA-232E and CCITT V.28 specifications at data rates up to 120kbps, when loaded in accordance with the EIA/TIA-232E specification. The applications of the MAX202ECSE+T include Notebook, Subnotebook, and Palmtop Computers, Battery-Powered Equipment, Hand-Held Equipment.
Parametrics
MAX202ECSE+T absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)V+: (VCC - 0.3V) to +14V; (3)V-: -14V to +0.3V; (4)Input Voltages: -0.3V to (V+ + 0.3V); (5)Output Voltages: (V- - 0.3V) to (V+ + 0.3V); (6)Short-Circuit Duration: Continuous; (7)Continuous Power Dissipation (TA = +70℃): 842mW; (8)Operating Temperature Ranges: 0℃ to +70℃; (9)Storage Temperature Range: -65℃ to +165℃; (10)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX202ECSE+T features: (1)For Low-Voltage Applications; (2)For Space-Constrained Applications; (3)For Low-Voltage or Data Cable Applications.

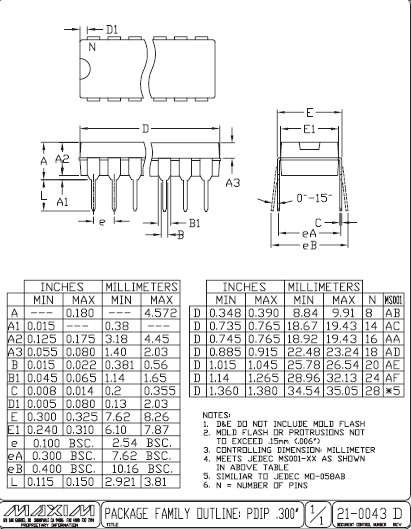

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX202ECSE+T |
Maxim Integrated Products |
RS-232 Interface IC 15kV ESD-Protected 5V RS232 Transceiver |
Data Sheet |
|
|
||||||||
 |
MAX202ECSE+TG068 |
Maxim Integrated Products |
RS-232 Interface IC 15kV ESD-Protected 5V RS232 Transceiver |
Data Sheet |
|
|
||||||||
