MAX1687EUE

step-up DC-DC converter, -0.3V, 1A, TSSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: MAX1687EUE

Brand:: Maxim Integrated Products - Maxim | Pack: TSSOP | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-17

From Other Seller

Part Number:MAX1687EUE
US $0.30 - 0.50
Quantity:

piece

Product Summary

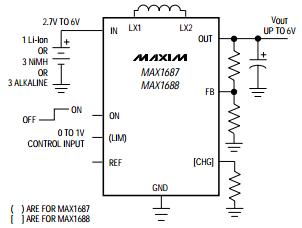

The MAX1687EUE is a step-up DC-DC converter which delivers up to 2W from a single Li-Ion or three NiMH cells. The devices are ideal for burst-load applications such as GSM cell phones and wireless LANs, where the RF power amplifiers require short, high current bursts. The MAX1687EUE reduces battery surge current by slowly charging a reservoir capacitor, which supplies the necessary peak energy for the load current burst. As a result, the peak battery current is limited, thus maximizing battery life and minimizing battery voltage sag and transient dips. An internal synchronous rectifier provides over 90% conversion efficiency and eliminates the need for an external Schottky diode. A logic shutdown mode reduces the shutdown current to only 3µA. The devices can be disabled during current bursts (RF transmit mode) to eliminate switching noise. Applications include GSM Phones, Wireless Handsets and PC Cards (PCMCIA).

Parametrics

MAX1687EUE absolute maximum ratings: (1)IN, ON, LX1, CHG, LIM, FB, OUT, REF to GND: -0.3V to +7V; (2)LX2 to GND: -0.3V to +8V; (3)IN, LX1 Average Current: 1A; (4)Operating Temperature Range: -40℃ to +85℃; (5)Storage Temperature Range: -65℃ to +150℃; (6)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX1687EUE features: (1)Low 450mA Peak Battery Current Provides 2A, 5V GSM Burst; (2)90% Efficiency; (3)Internal Power MOSFETs and Current-Sense Resistor; (4)Output Disconnects from Input During Shutdown; (5)3μA Shutdown Current; (6)Precise Voltage-Controlled Current Limit.
