Product Summary
The MAX1674/MAX1675/MAX1676 compact, high-efficiency,
step-up DC-DC converters fit in small μMAX
packages. They feature a built-in synchronous rectifier,
which improves efficiency and reduces size and cost
by eliminating the need for an external Schottky diode.
Quiescent supply current is only 16μA.
Features
94% Efficient at 200mA Output Current
16μA Quiescent Supply Current
Internal Synchronous Rectifier (no external diode)
0.1μA Logic-Controlled Shutdown
LBI/LBO Low-Battery Detector
Selectable Current Limit for Reduced Ripple
Low-Noise, Anti-Ringing Feature (MAX1676)
8-Pin and 10-Pin μMAX Packages
Preassembled Evaluation Kit (MAX1676EVKIT)

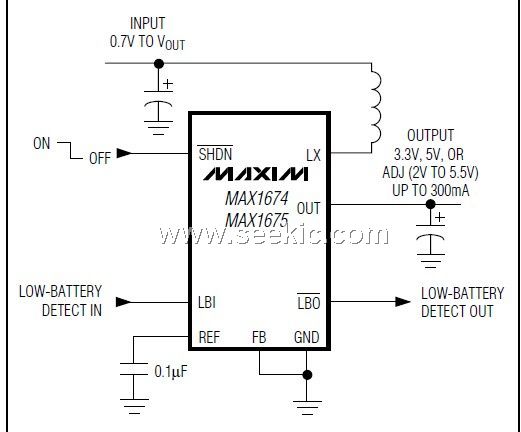

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX1674EUA+T |
Maxim Integrated Products |
DC/DC Switching Converters Compact Step-Up DC/DC Converter |
