Product Summary

The MAX038CWP is a high-frequency, precision function generator producing accurate, high-frequency triangle, sawtooth, sine, square, and pulse waveforms with a minimum of external components. The output frequency can be controlled over a frequency range of 0.1Hz to 20MHz by an internal 2.5V bandgap voltage reference and an external resistor and capacitor. The applications of the MAX038CWP include: (1)Precision Function Generators; (2)Voltage-Controlled Oscillators; (3)Frequency Modulators; (4)Pulse-Width Modulators; (5)Phase-Locked Loops; (6)Frequency Synthesizer; (7)FSK Generator—Sine and Square Waves.

Parametrics

MAX038CWP absolute maximum ratings: (1)V+ to GND: -0.3V to +6V; (2)DV+ to DGND: -0.3V to +6V; (3)V- to GND : +0.3V to -6V; (4)Pin Voltages IIN, FADJ, DADJ, PDO: (V- - 0.3V) to (V+ + 0.3V); COSC: +0.3V to V-; A0, A1, PDI, SYNC, REF: -0.3V to V+; GND to DGND: ±0.3V; (5)Maximum Current into Any Pin: ±50mA; (6)OUT, REF Short-Circuit Duration to GND, V+, V-: 30se; (7)Maximum Junction Temperature: +150℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX038CWP features: (1)0.1Hz to 20MHz Operating Frequency Range; (2)Triangle, Sawtooth, Sine, Square, and Pulse Waveforms; (3)Independent Frequency and Duty-Cycle Adjustments; (4)350 to 1 Frequency Sweep Range; (5)15% to 85% Variable Duty Cycle; (6)Low-Impedance Output Buffer: 0.1Ω; (7)Low-Distortion Sine Wave: 0.75%; (8)Low 200ppm/℃ Temperature Drift.

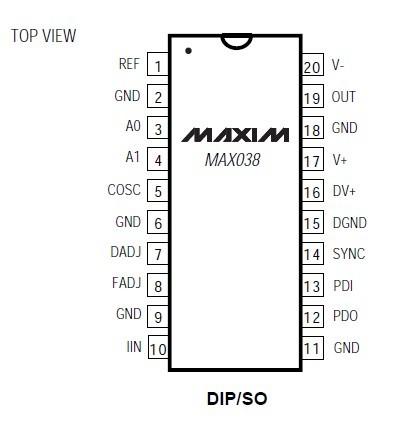

Diagrams

MAX038CWP package dimensions
