Product Summary

The MAPDCC0001 is an IC-based monolithic power divider in a low cost SOIC-8 plastic package. This 2-way power divider is ideally suited for applications where small size, low insertion loss, superior phase/amplitude tracking and low cost are required. Typical applications of the MAPDCC0001 include base station switching networks and other communication applications where size and PCB real estate are a premium. Available in tape and reel. The MAPDCC0001 is fabricated using a passive-integrated circuit process. The process features full-chip passivation for increased performance and reliability.

Parametrics

MAPDCC0001 absolute maximum ratings: (1)Input Power: 1 W CW; (2)Operating Temperature: -40°C to +85°C; (3)Storage Temperature: -65°C to +150°C.

Features

MAPDCC0001 features: (1)Small Size and Low Profile; (2)Excellent Amplitude and Phase Balance; (3)Superior Repeatability; (4)Typical Insertion Loss 0.5 dB; (5)Typical Isolation 23 dB; (6)1 Watt Power Handling; (7)Lead-Free SOIC-8 Package; (8)100% Matte Tin Plating over Copper; (9)Halogen-Free Green Mold Compound; (10)260°C Reflow Compatible; (11)RoHS Compliant Version of DS52-0001.

Diagrams

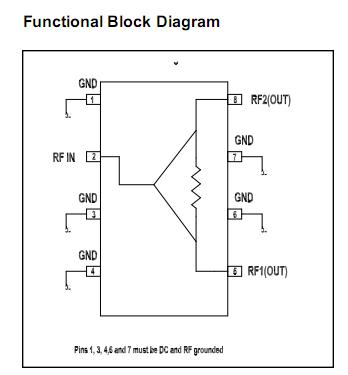

MAPDCC0001 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAPDCC0001
MAPDCC0001
M/A-COM Technology Solutions
Power Switch ICs - Power Distribution 824-960MHz 1Watt IL .05 Typ.
Data Sheet
0-150: $5.04
150-500: $4.54
500-1000: $3.53
1000-2000: $3.46
