Product Summary
The MAMXSS0013TR-3000 is a passive mixer that achieves the performance of a double balanced diode mixer in a lead-free SOT-25 package. The MAMXSS0013TR-3000 is ideally suited for use where high level RF signals and very wide dynamic range are required. Typical applications include frequency up/down conversion, modulation and demodulation in receivers and transmitters for base station and portable systems.
Parametrics
MAMXSS0013TR-3000 absolute maximum ratings: (1)RF Input Power: +27 dBm; (2)LO Drive Power: +27 dBm; (3)Operating Temperature: -40°C to +85°C; (4)Storage Temperature: -65°C to +150°C.
Features
MAMXSS0013TR-3000 features: (1)+12 dBm Input Power @ 1 dB Compression; (2)High Isolation, 28 dB LO to RF; (3)+3 to +8 dBm LO Drive Level; (4)DC - 500 MHz 3 dB IF Bandwidth; (5)Does not require DC bias; (6)Lead-Free SOT-25 Package; (7)100% Matte Tin Plating over Copper; (8)260°C Reflow Compatible; (9)RoHS* Compliant Version of MD54-0006.

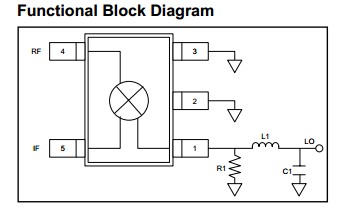

Diagrams
