Product Summary
The MAAVSS0008TR is a GaAs MMIC voltage variable absorptive attenuator in a lead-free SOIC-8 surface mount plastic package. The MAAVSS0008TR is ideally suited for use where linear attenuation fine tuning and very low power consumption are required.
Parametrics
MAAVSS0008TR absolute maximum ratings:(1)Input Power +21 dBm ; (2)Supply Voltage VCC -1 V < VCC < +8 V; (3)Control Voltage VC -1 V < VC < VCC + 0.5 V; (4)Operating Temperature -40℃ to +85℃; (5)Storage Temperature -65℃ to +150℃.
Features
MAAVSS0008TR features: (1)Single Positive Voltage Control: 0 to +5 Volts; (2)30 dB Voltage Variable Attenuation ; (3)± 2 dB Linearity from BSL ; (4)Low DC Power Consumption ; (5)Temperature Range: -40℃ to +85℃; (6)Fast Switching Speed ; (7)Lead-Free SOIC-8 Package; (8)100% Matte Tin Plating over Copper; (9)Halogen-Free “Green” Mold Compound ; (10)260℃ Reflow Compatible ; (11)RoHS* Compliant Version of AT-110-2.

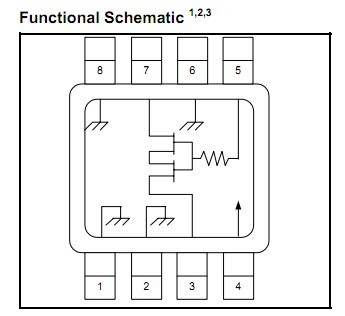

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAAVSS0008TR-3000 |
M/A-COM Technology Solutions |
Active Attenuator .5-2.0GHz 30dB VVA il 3.6dB Max. |
Data Sheet |
|
|
||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||
|
MAAV-007941 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
|
MAAV-007941-TR3000 |
M/A-COM Technology Solutions |
Active Attenuator DC-2GHz 12dB VVA -40C 85C |
Data Sheet |
|
|
||||||||||
|
MAAV-008022 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
|
MAAV-008022-TR3000 |
M/A-COM Technology Solutions |
Active Attenuator .5-2.0GHz 4dB VVA IL 3.0dB TYP. |
Data Sheet |
|
|
||||||||||
|
MAAVCC0001 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
|
MAAVCC0002 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
