Product Summary

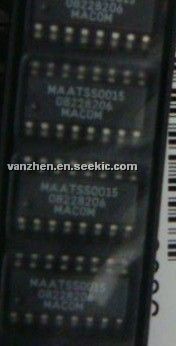

The MAATSS0015TR is a 4-bit, 1-dB step GaAs MMIC digital attenuator in a lead-free SOIC 16-lead surface mount plastic package. The MAATSS0015 is ideally suited for use where high accuracy, fast switching, very low power consumption and low intermodulation products are required. Typical applications include radio, cellular, and wireless LANs, GPS equipment and other gain/level control circuits.
Parametrics
MAATSS0015TR absolute maximum ratings: (1)Input Power: +27 dBm(50 MHz), +34 dBm(500-2000 MHz); (2)Control Voltage: -8.5 V ≤ VC ≤ 5V; (3)Operating Temperature -40°C to +85°C; (4)Storage Temperature -65°C to +150°C.
Features
MAATSS0015TR features: (1)1-dB Attenuation Steps to 15 dB; (2)High Accuracy; (3)Low Intermodulation Product: +50 dBm IP3; (4)Low DC Power Consumption: 50 μW; (5)Tape and Reel Packaging Available; (6)Temperature Stability +/-0.15 dB: -40°C to +85°C; (7)Lead-Free SOIC-16 Package; (8)100% Matte Tin Plating over Copper; (9)Halogen-Free “Green” Mold Compound; (10)260°C Re-flow Compatible; (11)RoHS* Compliant Version of AT-210.

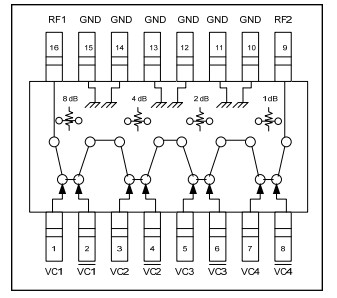

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAATSS0015TR |
M/A-COM Technology Solutions |
Active Attenuator DC-2GHz 4 Bit 1dB steps to 15dB |
Data Sheet |
|
|
||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||
|
MAATSS0001 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||
|
MAATSS0002 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||
|
MAATSS0015TR |
M/A-COM Technology Solutions |
Active Attenuator DC-2GHz 4 Bit 1dB steps to 15dB |
Data Sheet |
|
|
||||||||||||||
 |
MAATSS0017TR |
M/A-COM Technology Solutions |
Attenuators (ICs) 400-2500MHz IL2.2dB Atten. Range 15.5dB |
Data Sheet |
|
|
||||||||||||||
|
MAATSS0018TR-3000 |
M/A-COM Technology Solutions |
Active Attenuator DC-2GHz 1 Bit Single 10dB Step |
Data Sheet |
|
|
||||||||||||||
|
MAATSS0020TR |
M/A-COM Technology Solutions |
Attenuators (ICs) DC-2GHz IL 2.2dB Atten. Range 31dB |
Data Sheet |
|
|
||||||||||||||
