Product Summary
The MAALSS0044TR-3000 is a Low Noise Amplifier. The MAALSS0044TR-3000 is a high performance GaAs MMIC low noise amplifier in a lead-free SOIC-8 surface mount package. The MAALSS0044TR-3000 employs a fully monolithic design which eliminates the need for external tuning networks. It can be biased using 3- or 5-volt supplies and has an option for biasing at higher currents for increased dynamic range. The MAALSS0044TR-3000 is ideally suited for use where low noise figure, high gain, high dynamic range and low power consumption are required. Typical applications include receiver front ends in the Global Positioning System (GPS) and Japanese Personal Digital Cellular (PDC-1500) markets, as well as standard gain blocks, buffer amps, driver amps and IF amps in both fixed and portable systems. The MAALSS0044TR-3000 is fabricated using a mature 0.5-micron gate length GaAs process. The process features full passivation for increased performance reliability.
Parametrics
MAALSS0044TR-3000 absolute maximum ratings: (1)VDD: +10 VDC; (2)Input Power: +17 dBm; (3)Current: 30 mA; (4)Channel Temperature: +150℃; (5)Operating Temperature: -40℃ to +85℃; (6)Storage Temperature: -65℃ to +150℃.
Features
MAALSS0044TR-3000 features: (1)Low Noise Figure: 1.55 dB; (2)High Gain: 21 dB; (3)Low Power Consumption: 3 to 5 V, 8 mA; (4)High Dynamic Range; (5)DC Decoupled RF Input and Output; (6)No External RF Tuning Elements Necessary; (7)Lead-Free SOIC-8 Package; (8)100% Matte Tin Plating over Copper; (9)Halogen-Free "Green" Mold Compound; (10)260℃ Reflow Compatible; (11)RoHS Compliant Version of MAAM12021.

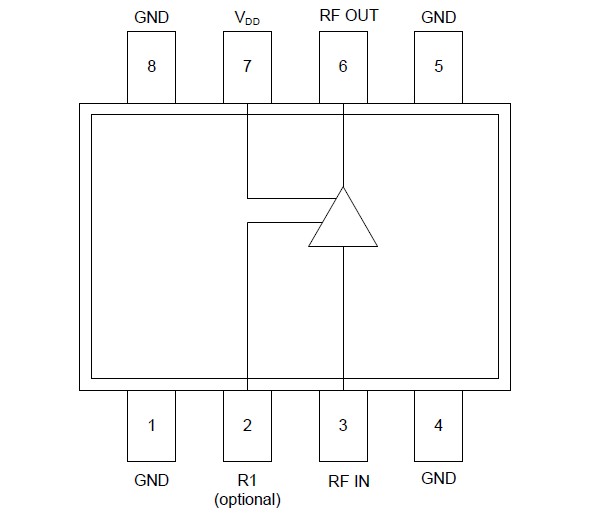

Diagrams
