Product Summary

The MAALSS0042TR-3000 is a high performance GaAs MMIC low noise amplifier in a lead-free SOIC 8-lead surface mount plastic package. The MAALSS0042TR-3000 employs a monolithic 3-stage self-bias design and a simple external matching network to obtain minimum noise figure. The MAALSS0042TR-3000 is ideally suited for use where low noise figure, high gain, high dynamic range and low power consumption are required. Typical applications include receiver front ends in the Global Positioning System (GPS) market, as well as standard gain blocks, buffer amps, driver amps, and IF amps in both fixed and portable systems.

Parametrics

MAALSS0042TR-3000 absolute maximum ratings: (1)VDD: +10 VDC; (2)Input Power: 17 dBm; (3)Channel Temperature: +150 °C; (4)Operating Temperature: -40 °C to +85 °C; (5)Storage Temperature: -65 °C to +150 °C.

Features

MAALSS0042TR-3000 features: (1)Low Noise Figure: 1.15 dB; (2)High Gain: 27 dB; (3)Low Power Consumption: 5V, 20 mA; (4)High Dynamic Range; (5)Lead-Free SOIC-8 Package; (6)100% Matte Tin Plating over Copper; (7)260°C Reflow Compatible; (8)RoHS* Compliant Version of AM50-0002.

Diagrams

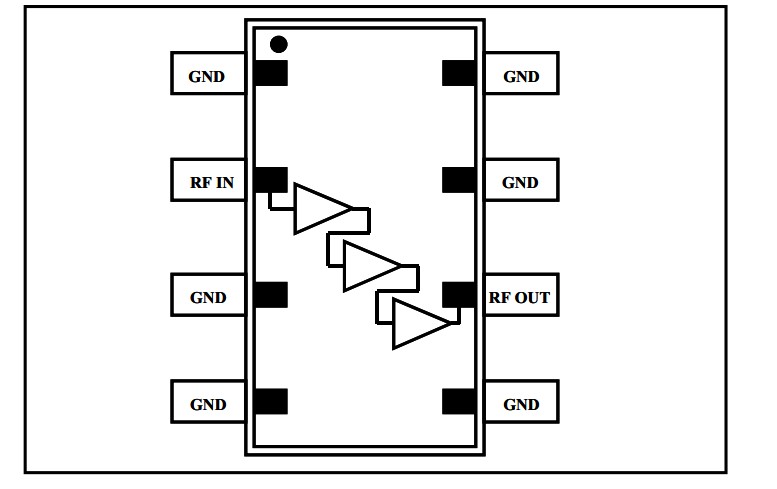

MAALSS0042TR-3000 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAALSS0042TR-3000
MAALSS0042TR-3000
M/A-COM Technology Solutions
RF Amplifier 1550-1600MHz Gain 27dB
Data Sheet
0-1: $1.57
1-10: $1.31
10-100: $1.18
100-500: $1.04
