Product Summary

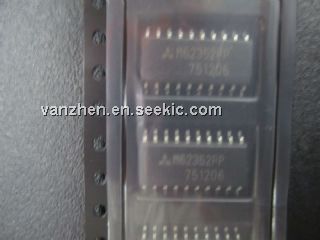

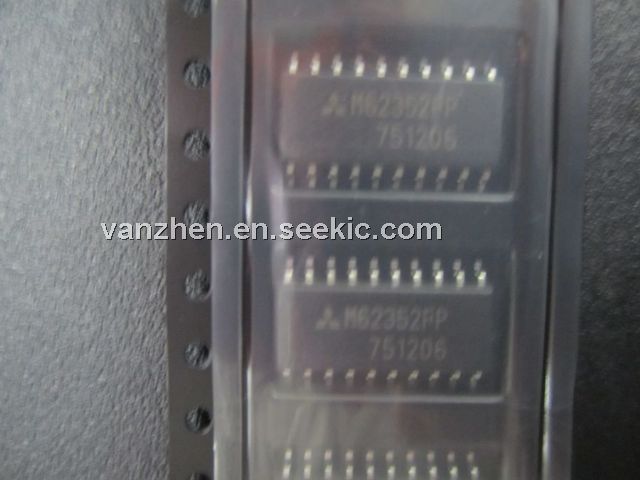

The M62352FP is an 8-bit 12ch D-A converter of CMOS structure with output buffer operational amplifiers. The 3-wire serial interface method is used for the transfer format mum wiring. It is able to cascading serial use with Do terminal. The output buffer operational amplifier operates in the whole voltage range from power supply to ground for both input/output. The applications of the M62352FP include Adjustment/control of industrial or home-use electronic equipment, such as VTR camera, VTR set, TV, and CRT display.
Parametrics
M62352FP absolute maximum ratings: (1)Vcc, Supply voltage: -0.3 to 7.0V; (2)VDD, D-A converter upper reference voltage: -0.3 to 7.0V; (3)Vin, Input voltage: -0.3 to Vcc+0.3V; (4)Vo, Output voltage: -0.3 to Vcc+0.3V; (5)Pd, Power dissipation: 350(P)/350(FP)/150(GP)mV; (6)Topr, Operating temperature: -20 to 85℃; (7)Tstg, Storage temperature: -55 to 125℃.
Features
M62352FP features: (1)2bit serial data input(3-wire serial data transfer method); (2)Highly stable output buffer operational amplifier allow operation in the all voltage range from power supply to ground.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 M62352FP |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
