Product Summary

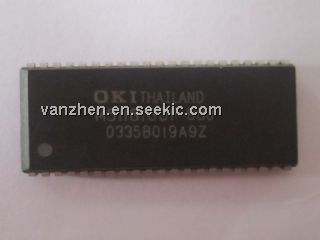

The m5118160f-60j is a 1,048,576-word 16-bit dynamic RAM fabricated in Oki silicon-gate CMOS technology. The m5118160f-60j achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the m5118160f-60j in a quadruple-layer polysilicon/double-layer metal CMOS process. The m5118160f-60j is available in a 42-pin plastic SOJ or 50/44-pin plastic TSOP.
Parametrics
m5118160f-60j absolute maximum ratings: (1) Voltage on Any Pin Relative to VSS, VIN, VOUT: -0.5 to Vcc +0.5V; (2) Voltage Vcc Supply relative to Vss, Vcc: -0.5 to 7V; (3) Short Circuit Output Current IOS: 50mA; (4) Power Dissipation PD: 1W; (5) Operating Temperature Topr: 0 to 70°C; (6) Storage Temperature Tstg: -55 to 150°C.
Features
m5118160f-60j features: (1) 1,048,576-word 16-bit configuration; (2) Single 5V power supply, ±10% tolerance; (3) Input: TTL compatible, low input capacitance; (4) Output: TTL compatible, 3-state; (5) Refresh: 1024 cycles/16ms; (6) Fast page mode, read modify write capability; (7) CAS before RAS refresh, hidden refresh, RAS-only refresh capability.

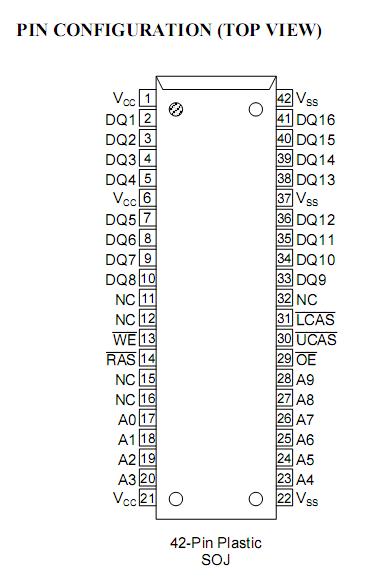

Diagrams
