Product Summary
The M45PE20 is a 2Mbit (256K x 8 bit) Serial
Paged Flash Memory accessed by a high speed
SPI-compatible bus.
Features
■ 2Mbit of Page-Erasable Flash Memory
■ Page Write (up to 256 Bytes) in 11ms (typical)
■ Page Program (up to 256 Bytes) in 1.2ms
(typical)
■ Page Erase (256 Bytes) in 10ms (typical)
■ Sector Erase (512 Kbit)
■ 2.7 to 3.6V Single Supply Voltage
■ SPI Bus Compatible Serial Interface
■ 25MHz Clock Rate (maximum)
■ Deep Power-down Mode 1μA (typical)
■ Electronic Signature
– JEDEC Standard Two-Byte Signature
(4012h)
■ More than 100,000 Write Cycles
■ More than 20 Year Data Retention

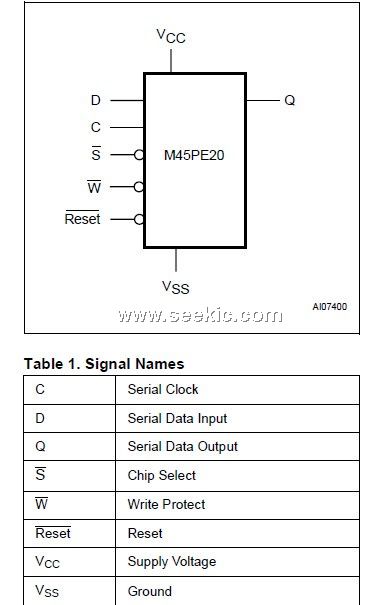

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M45PE20-VMN6TP |
STMicroelectronics |
Flash SERIAL FLASH 2 Mbit Datas |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
M45PE10 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
M45PE10-VMN6P |
STMicroelectronics |
Flash SERIAL FLASH 1 Mbit Datas |
Data Sheet |
Negotiable |
|
||||
|
M45PE10-VMN6TP |
STMicroelectronics |
Flash SERIAL FLASH 1 Mbit Datas |
Data Sheet |
Negotiable |
|
||||
|
M45PE10-VMP6G |
STMicroelectronics |
Flash 1 Mbit Lo Vltg Page Erasable Seral Flash |
Data Sheet |
Negotiable |
|
||||
|
M45PE10-VMP6TG |
STMicroelectronics |
Flash 1 Mbit Lo Vltg Page Erasable Seral Flash |
Data Sheet |
Negotiable |
|
||||
|
M45PE16-VMP6G |
STMicroelectronics |
Flash 16 Mbit low-voltage |
Data Sheet |
Negotiable |
|
||||
