Product Summary

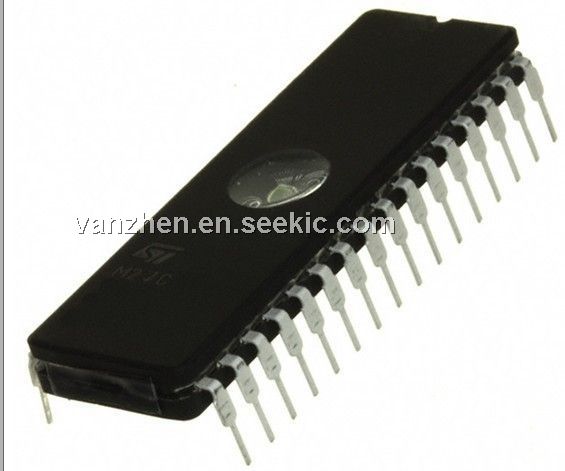

The M27C801-90F1 is an 8 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). The M27C801-90F1 is ideally suited for applications where fast turn-around and pattern experimentation are important requirements and is organized as 1,048,576 by 8 bits. A new pattern can then be written to the device by following the programming procedure. For applications where the content is programmed only one time and erasure is not required, the M27C801-90F1 is offered in PDIP32, PLCC32 and TSOP32 (8 x 20 mm) packages.
Parametrics
M27C801-90F1 absolute maximum ratings: (1)Ambient Operating Temperature, TA: -40 to 125℃; (2)Temperature Under Bias, TBIAS: -50 to 125℃; (3)Storage Temperature, TSTG: -65 to 150℃; (4)Input or Output Voltage, VIO: -2 to 7 V; (5)Supply Voltage, VCC: -2 to 7 V; (6)A9 Voltage, VA9: -2 to 13.5 V; (7)Program Supply Voltage, VPP: -2 to 14 V.
Features
M27C801-90F1 features: (1)5V ± 10% supply voltage in read operation; (2)Access time: 45ns; (3)Low power consumption: Active Current 35mA at 5MHz; standby current 100μA; (4)Programming voltage: 12.75V ± 0.25V; (5)Programming time: 50μs/word; (6)Electronic signature, manufacturer Code: 20h; Device Code: 42h.

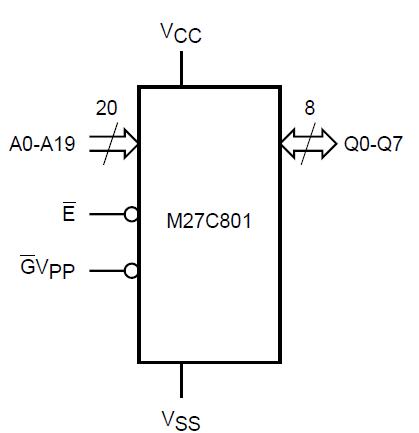

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

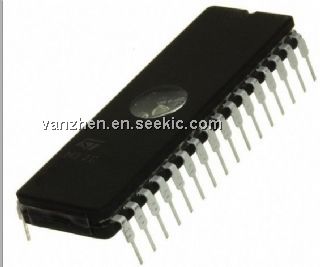

 M27C801-90F1 |
STMicroelectronics |
EPROM 8M (1Mx8) 90ns |
Data Sheet |
Negotiable |
|
||||
