Product Summary

The M25PX80 is a 8 Mbit (1 Mb x 8) serial Flash memory, with advanced write protection
mechanisms, accessed by a high speed SPI-compatible bus.
The M25PX80 supports two new, high-performance dual input/output instructions:
?? Dual Output Fast Read (DOFR) instruction used to read data at up to 75 MHz(1) by
using both pin DQ1 and pin DQ0 as outputs
?? Dual Input Fast Program (DIFP) instruction used to program data at up to 75 MHz(1) by
using both pin DQ1 and pin DQ0 as inputs

Features

SPI bus compatible serial interface
?? 75 MHz (maximum) clock frequency
?? 2.3 V to 3.6 V single supply voltage
?? Dual input/output instructions resulting in an
equivalent clock frequency of 150 MHz:
– Dual Output Fast Read instruction
– Dual Input Fast Program instruction
?? 8 Mbit Flash memory
– Uniform 4-Kbyte subsectors
– Uniform 64-Kbyte sectors

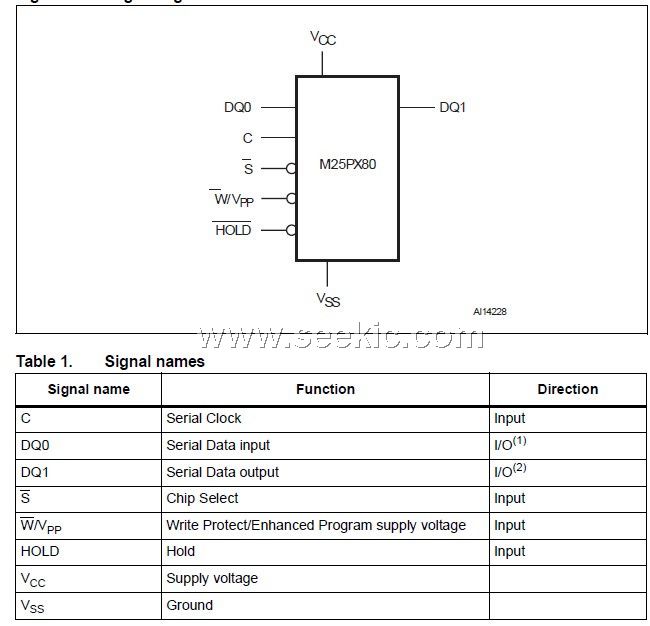

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
M25PX80-VMN6TP
M25PX80-VMN6TP

IC FLASH 8MBIT 75MHZ 8SOIC
Data Sheet
0-1: $0.57
1-10: $0.52
10-25: $0.51
25-50: $0.51
50-100: $0.45
100-250: $0.45
250-500: $0.44
500-1000: $0.43
