Product Summary

The M25PE16 is a 16Mb (2Mb x 8-bit) serial-paged Flash memory device accessed by a
high-speed SPI-compatible bus.
The memory can be written or programmed 1 to 256 bytes at a time using the PAGE
WRITE or PAGE PROGRAM command. The PAGE WRITE command consists of an integrated
PAGE ERASE cycle followed by a PAGE PROGRAM cycle.

Features

? 16Mb of page-erasable Flash memory
? 2.7V to 3.6V single supply voltage
? SPI bus compatible serial interface
? 75 MHz clock rate (maximum)
? Page size: 256 bytes
– Page write in 11ms (TYP)
– Page program in 0.8ms (TYP)
– Page erase in 10ms (TYP)
? Subsector erase: 4KB
– Sector erase: 64KB
– Bulk erase: 16Mb
? Deep power-down mode: 1μA (TYP)
? Electronic signature
– JEDEC standard 2-byte signature (8015h)
– Unique ID code (UID) with 16-bytes read-only
space, available upon customer request
? Software write-protection on a 64KB sector basis
? More than 100,000 write cycles per sector
? More than 20 years of data retention
? Hardware write protection of the memory area selected
using the BP0, BP1, and BP2 bits
? Packages (RoHS compliant)
– SO8W (MW) 208mils
– VFQFPN8 (MP) 6mm x 5mm (MLP8)

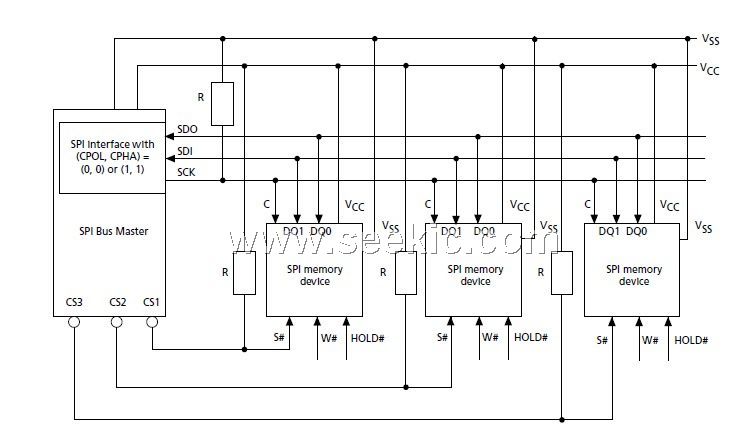

Diagrams
