Product Summary
The M25P32 is a 32 Mbit (4M x 8) Serial Flash memory, with advanced write protection
mechanisms, accessed by a high speed SPI-compatible bus.
The memory can be programmed 1 to 256 bytes at a time, using the Page Program
instruction.
Features
■ 32 Mbit of Flash memory
■ 2.7 V to 3.6 V single supply voltage
■ SPI bus compatible serial interface
■ 75 MHz clock rate (maximum)
■ VPP = 9 V for Fast Program/Erase mode
(optional)
■ Page Program (up to 256 bytes)
– in 0.64 ms (typical)
■ Sector Erase (512 Kbit) in 0.6 s (typical)
■ Bulk Erase:
– in 23 s (typical)
– in 17 s (typical with VPP = 9 V)
■ Deep Power-down mode 1 μA (typical)
■ Electronic Signatures
– JEDEC standard two-byte signature
(2016h)
– Unique ID code (UID) +16 bytes of CFI
data
– RES instruction, one-byte, signature (15h),
for backward compatibility

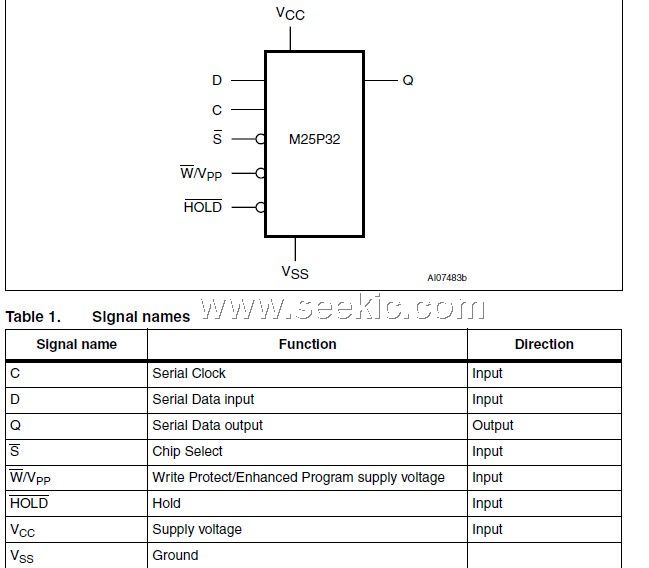

Diagrams
