Product Summary

The M25P20 is a 2Mb (256Kb x 8) serial Flash memory device with advanced write protection
mechanisms accessed by a high speed SPI-compatible bus. The device supports
high-performance commands for clock frequency up to 75MHz.


Features

? SPI bus compatible serial interface
? 2Mb Flash memory
? 75 MHz clock frequency (maximum)
? 2.3V to 3.6V single supply voltage
? Page program (up to 256 bytes) in 0.8ms (TYP)
? Erase capability
– Sector erase: 512Kb in 0.6s (TYP)
– Bulk erase: 3s (TYP)
? Hardware write protection: protected area size defined
by non-volatile bits BP0 and BP1
? Deep power down: 1μA (TYP)

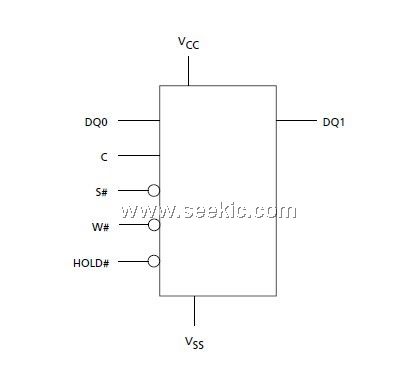

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
M25P20-VMN6TPB
M25P20-VMN6TPB

IC FLASH 2MBIT 75MHZ 8SOIC
Data Sheet
0-1: $0.40
1-10: $0.36
10-25: $0.35
25-50: $0.35
50-100: $0.31
100-250: $0.31
250-500: $0.31
500-1000: $0.30
