Product Summary
The M25P16 is a 16 Mbit (2 Mbit × 8) serial Flash memory, with advanced write protection
mechanisms, accessed by a high speed SPI-compatible bus.
The memory can be programmed 1 to 256 bytes at a time, using the Page Program
instruction.
Features
16 Mbit of Flash memory
■ Page Program (up to 256 bytes) in 0.64 ms
(typical)
■ Sector Erase (512 Kbit) in 0.6 s (typical)
■ Bulk Erase (16 Mbit) in 13 s (typical)
■ 2.7 V to 3.6 V single supply voltage
■ SPI bus compatible serial interface
■ 75 MHz Clock rate (maximum)
■ Deep Power-down mode 1 μA (typical)
■ Electronic signatures
– JEDEC standard two-byte signature
(2015h)
– Unique ID code (UID) with 16 bytes readonly,
available upon customer request
– RES instruction, one-byte, signature (14h),
for backward compatibility
■ More than 100,000 Erase/Program cycles per
sector

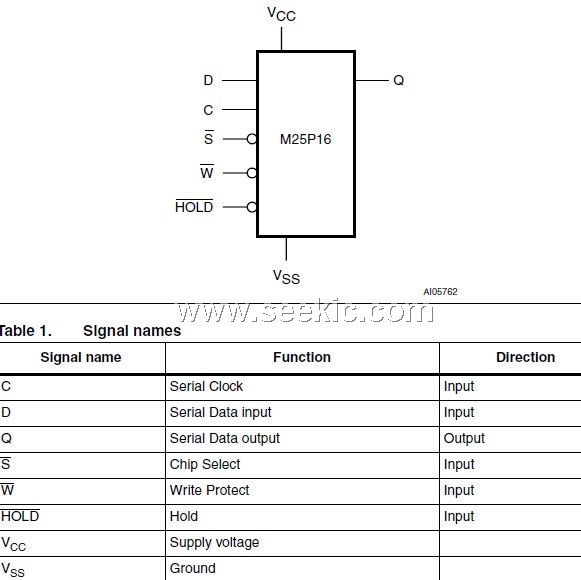

Diagrams
