Product Summary
The LPC2458FET-180 is a Single-chip 16-bit/32-bit micro. NXP Semiconductors designed the LPC2458FET-180 microcontroller around a 16-bit/32-bit ARM7TDMI-S CPU core with real-time debug interfaces that include both JTAG and embedded trace. The LPC2458FET-180 has 512 kB of on-chip high-speed flash memory. This flash memory includes a special 128-bit wide memory interface and accelerator architecture that enables the CPU to execute sequential instructions from flash memory at the maximum 72 MHz system clock rate. This feature is available only on the LPC2000 ARM microcontroller family of products. The LPC2458FET-180 can execute both 32-bit ARM and 16-bit Thumb instructions. Support for the two instruction sets means engineers can choose to optimize their application for either performance or code size at the sub-routine level. When the core executes instructions in Thumb state it can reduce code size by more than 30% with only a small loss in performance while executing instructions in ARM state maximizes core performance. The LPC2458FET-180 microcontroller is ideal for multi-purpose communication applications. It incorporates a 10/100 Ethernet Media Access Controller (MAC), a USB full-speed Device/Host/OTG Controller with 4 kB of endpoint RAM, four UARTs, two Controller Area Network (CAN) channels, an SPI interface, two Synchronous Serial Ports (SSP), three I2C interfaces, and an I2S interface. Supporting this collection of serial communications interfaces are the following feature components; an on-chip 4 MHz internal precision oscillator, 98 kB of total RAM consisting of 64 kB of local SRAM, 16 kB SRAM for Ethernet, 16 kB SRAM for general purpose DMA, 2 kB of battery powered SRAM, and an External Memory Controller (EMC). These features make this device optimally suited for communication gateways and protocol converters. Complementing the many serial communication controllers, versatile clocking capabilities, and memory features are various 32-bit timers, an improved 10-bit ADC, 10-bit DAC, two PWM units, four external interrupt pins, and up to 136 fast GPIO lines. The LPC2458FET-180 connects 64 of the GPIO pins to the hardware based Vector Interrupt Controller (VIC) that means these external inputs can generate edge-triggered interrupts. All of these features make the LPC2458FET-180 particularly suitable for industrial control and medical systems. The applications of the LPC2458FET-180 include Industrial control, Medical systems, Protocol converter, Communications.
Parametrics
LPC2458FET-180 absolute maximum ratings: (1)supply voltage: 3.0 to 3.6 V; (2)DC-to-DC converter supply voltage: 3.0 to 3.6 V; (3)analog 3.3 V pad supply voltage: -0.5 to +4.6 V; (4)input voltage on pin VBAT: -0.5 to +4.6 V; (5)input voltage on pin VREF: -0.5 to +4.6 V; (6)analog input voltage: -0.5 to +5.1 V; (7)input voltage: -0.5 to +6.0 V; (8)supply current: 100 mA; (9)ground current: 100 mA; (10)storage temperature: -65 to +150 ℃; (11) Total power dissipation: 1.5 W.
Features
LPC2458FET-180 features: (1)ARM7TDMI-S processor, running at up to 72 MHz.; (2)512 kB on-chip flash program memory with In-System Programming (ISP) and In-Application Programming (IAP) capabilities. Flash program memory is on the ARM local bus for high performance CPU access; (3)Dual Advanced High-performance Bus (AHB) system allows simultaneous Ethernet DMA, USB DMA, and program execution from on-chip flash with no contention; (4)EMC provides support for asynchronous static memory devices such as RAM, ROM and flash, as well as dynamic memories such as Single Data Rate SDRAM; (5)Advanced Vectored Interrupt Controller (VIC), supporting up to 32 vectored interrupts; (6)General Purpose DMA controller (GPDMA) on AHB that can be used with the SSP, I2S, and SD/MM interface as well as for memory-to-memory transfers; (7)Standard ARM test/debug interface for compatibility with existing tools; (8)Emulation trace module supports real-time trace; (9)Single 3.3 V power supply (3.0 V to 3.6 V); (10)Three reduced power modes: idle, sleep, and power-down; (11)Four external interrupt inputs configurable as edge/level sensitive All pins on port 0 and port 2 can be used as edge sensitive interrupt sources.

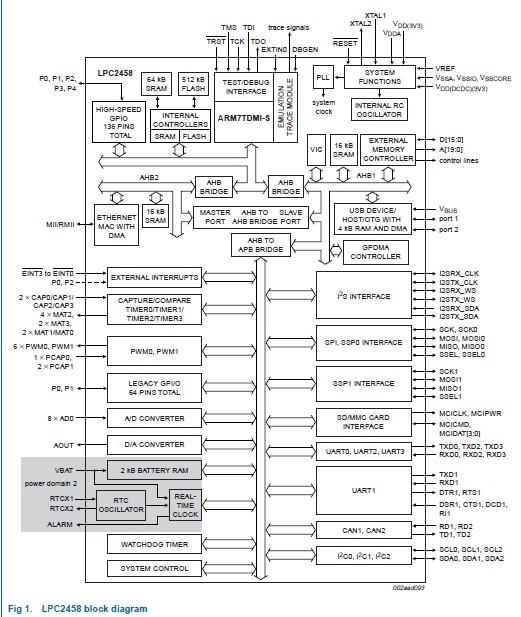

Diagrams
