LPC11U24FBD48/301

Product Summary

The LPC11U24FBD48/301 is a ARM Cortex-M0 based, low-cost 32-bit MCU family, designed for 8/16-bit microcontroller applications, offering performance, low power, simple instruction set and memory addressing together with reduced code size compared to existing 8/16-bit architectures. The LPC11U24FBD48/301 operates at CPU frequencies of up to 50 MHz. Equipped with a highly flexible and configurable Full-Speed USB 2.0 device controller, the LPC11U24FBD48/301 brings unparalleled design flexibility and seamless integration to todays demanding connectivity solutions.

Parametrics

LPC11U24FBD48/301 absolute maximum ratings: (1)VDD supply voltage (core and external rail): 1.8 to 3.6 V; (2)VI input voltage 5 V tolerant I/O pins; only valid when the VDD supply voltage is present: -0.5 to +5.5 V; (3)IDD supply current per supply pin: 100 mA; (4)ISS ground current per ground pin: 100 mA; (5)Ilatch I/O latch-up current -(0.5VDD)< VI < (1.5VDD); Tj < 125 °C: 100 mA; (6)Tstg storage temperature non-operating: -65 to +150 °C; (7)Tj(max)maximum junction temperature: 150 °C; (8)Ptot(pack)total power dissipation (per package)based on package heat transfer, not device power consumption: 1.5 W; (9)VESD electrostatic discharge voltage human body model; all pins: -6500 to +6500 V.

Features

LPC11U24FBD48/301 features: (1)ARM Cortex-M0 processor, running at frequencies of up to 50 MHz; (2)ARM Cortex-M0 built-in Nested Vectored Interrupt Controller (NVIC); (3)Non-Maskable Interrupt (NMI)input selectable from several input sources; (4)System tick timer; (5)Up to 32 kB on-chip flash program memory; (6)Up to 4 kB on-chip EEPROM data memory; byte erasable and byte programmable; (7)Up to 10 kB SRAM data memory; (8)16 kB boot ROM; (9)In-System Programming (ISP)and In-Application Programming (IAP)for flash and EEPROM via on-chip bootloader software; (10)ROM-based USB drivers. Flash updates via USB supported; (11)ROM-based 32-bit integer division routines.

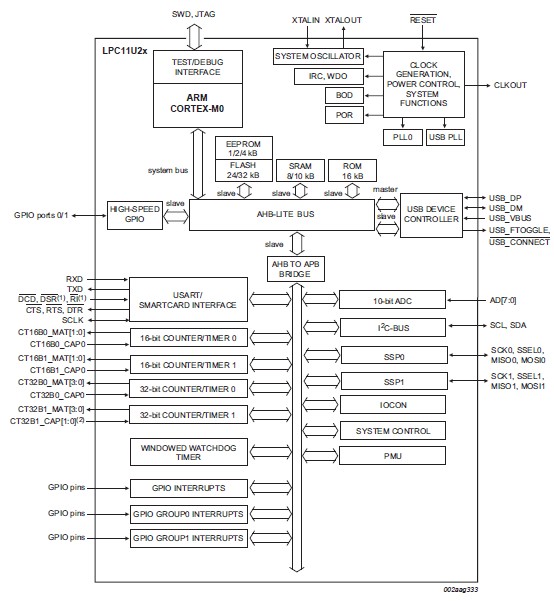

Diagrams
