Product Summary
The LM7221 is a micropower CMOS comparator available in
the space saving SOT23-5 package. This makes this comparator
ideal for space and weight critical designs. The
LMC7221 is also available in the SO-8 package. The
LMC7221 is supplied in two offset voltage grades, 5 mV and
15 mV.
Parametrics
Features
Tiny SOT 23-5 package saves space
Package is less than 1.43 mm thick
Typical supply current 7 μA at 5V
Response time of 4 μs at 5V
LMC7221—open drain output
Input common-mode range beyond V? and V+
Low input current

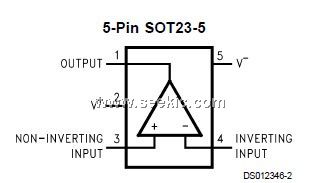

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LMC7221BIM5X |
National Semiconductor (TI) |
Comparator ICs |
Data Sheet |
|
|
||||||||||||
 |
LMC7221BIM5X/NOPB |
National Semiconductor (TI) |
Comparator ICs |
Data Sheet |
|
|
||||||||||||
