LM73CIMK-0

±5mA, integrated, digital-output temperature sensor, 2.7V, SOT23-6, 11-to-14 Bit

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: LM73CIMK-0

Brand:: Texas Instruments - TI | Pack: SOT | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-18

From Other Seller

Part Number:LM73CIMK-0
US $0.30 - 0.50
Quantity:

piece

Product Summary

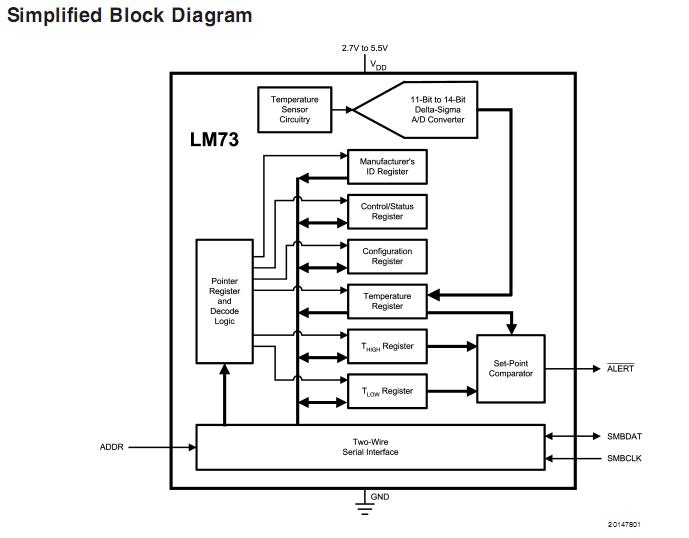

The LM73CIMK-0 is an integrated, digital-output temperature sensor featuring an incremental Delta-Sigma ADC with a two-wire interface that is compatible with the SMBus and I2C interfaces. The host can query the LM73CIMK-0 at any time to read temperature. Available in a 6-pin SOT-23 package, the LM73CIMK-0 occupies very little board area while operating over a wide temperature range (-40℃ to 150℃) and providing ±1.0℃ accuracy from -10℃ to 80℃. A single multi-level address line selects one of three unique device addresses. An open-drain ALERT output goes active when the temperature exceeds a programmable limit. The applications of the LM73CIMK-0 are Portable Electronics, Notebook Computers, Automotive, System Thermal Management, Office Electronics.

Parametrics

LM73CIMK-0 absolute maximum ratings: (1)Supply Voltage:-0.3V to 6.0V; (2)Voltage at Any Pin:-0.3V to (VDD + 0.5 V); (3)Input Current at Any Pin: ±5mA; (4)Storage Temperature:-65℃ to +150℃; (5)ESD Susceptibility: Human Body Model:2000 V, Machine Model:200 V.

Features

LM73CIMK-0 features: (1)Single address pin offers choice of three selectable addresses per version for a total of six possible addresses; (2)SMBus and I2C-compatible two-wire interface; (3)Supports 400 kHz operation; (4)Shutdown mode with one-shot feature available for very low average power consumption; (5)Programmable digital temperature resolution from 11 bits to 14 bits; (6)Fast conversion rate ideal for quick power up and measuring rapidly changing temperature; (7)Open-drain ALERT output pin goes active when temperature is above a programmed temperature limit; (8)Very stable, low-noise digital ouput; (9)UL Recognized Component.
