Product Summary

The LM4041CIM3X-1.2 is a precision voltage reference which is available in the sub-miniature SC70 and SOT-23 surface-mount packages. The design eliminates the need for an external stabilizing capacitor while ensuring stability with any capacitive load, thus making the LM4041CIM3X-1.2 easy to use. Further reducing design effort is the availability of a fixed (1.225V) and adjustable reverse breakdown voltage. The minimum operating current is 60 μA for the LM4041CIM3X-1.2. Applications include Portable, Battery-Powered Equipment, Data Acquisition Systems, Instrumentation, Process Control, Energy Management, Automotive and Precision Audio Components.

Parametrics

LM4041CIM3X-1.2 absolute maximum ratings: (1)Reverse Current: 20 mA; (2)Forward Current: 10 mA; (3)Power Dissipation-M3 Package: 306 mW; (4)Power Dissipation-Z Package: 550 mW; (5)Power Dissipation-M7 Package: 241mW; (6)Storage Temperature: -65℃ to +150℃; (7)ESD Susceptibility-Human Body Model (Note 3): 2 kV; (8)ESD Susceptibility-Machine Model (Note 3): 200V.

Features

LM4041CIM3X-1.2 features: (1)Small packages: SOT-23, TO-92, and SC70; (2)No output capacitor required; (3)Tolerates capacitive loads; (4)Reverse breakdown voltage options of 1.225V and adjustable.

Diagrams

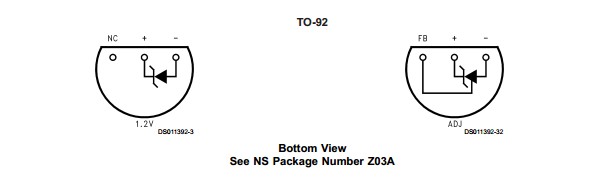

LM4041CIM3X-1.2 Connection Diagrams
