Product Summary
The LM3S811-IQN50-C2 is a Microcontroller. Applications include: Factory automation and control, Industrial control power devices, Building and home automation, Stepper motors, Brushless DC motors, AC induction motors.
Parametrics
LM3S811-IQN50-C2 absolute maximum ratings: (1)Supply voltage range (VDD) VDD: 0 to +3.6 V; (2)Input voltage VIN: -0.3 to 5.5 V; (3)Maximum current for pins, excluding pins operating as GPIOs I: 100 mA; (4)Maximum current for GPIO pins I: 100 mA.
Features
LM3S811-IQN50-C2 features: (1)32-bit ARMR Cortex -M3 v7M architecture optimized for small-footprint embedded applications; (2)50-MHz operation; (3)System timer (SysTick) provides a simple, 24-bit clear-on-write, decrementing, wrap-on-zero counter with a flexible control mechanism; (4)Thumb-compatible Thumb-2-only instruction set processor core for high code density; (5)Integrated Nested Vectored Interrupt Controller (NVIC) provides deterministic interrupt handling; (6)26 interrupt channels with eight priority levels; (7)Memory protection unit (MPU) provides a privileged mode for protected operating system functionality; (8)Unaligned data access enables data to be efficiently packed into memory; (9)Atomic bit manipulation (bit-banding) delivers maximum memory utilization and streamlined peripheral control.

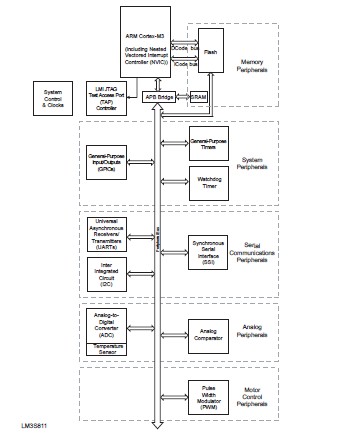

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM3S811-IQN50-C2 |
Texas Instruments |
ARM Microcontrollers (MCU) ARM CORTEX-M3(IND) MICROCONTROLLER |
Data Sheet |
|
|
||||||||||||
|
LM3S811-IQN50-C2T |
Texas Instruments |
ARM Microcontrollers (MCU) ARM CORTEX-M3(IND) MICROCONTROLLER |
Data Sheet |
|
|
||||||||||||
