Product Summary
The LM3480IM3-5.0 is an integrated linear voltage regulator. It features operation from an input as high as 30V and a guaranteed maximum dropout of 1.2V at the full 100 mA load. Standard packaging for the LM3480IM3-5.0 is the 3-lead SuperSOT package.The LM3480 series features a 3.3V member. The SOT packaging and quasi low dropout features of the LM3480IM3-5.0 serie converge in this device to provide a very nice, very tiny 3.3V, 100 mA bias supply that regulates directly off the system 5V±5% power supply. The LM3480IM3-5.0 can be applied in tiny alternative to LM78LXX series and similar devices, tiny 5V±5% to 3.3V, 100 mA converter, post regulator for switching DC/DC converter, amd Bias supply for analog circuits.
Parametrics
LM3480IM3-5.0 absolute maximum ratings: (1)Input Voltage (IN to GND): 35V; (2)Power Dissipation (Note 5): 333mW; (3)Junction Temp.: +150°C; (4)Ambient Storage Temp: -65 to +150°C; (5)Max. Input Voltage (IN to GND): 30V; (6)Junction Temp. (TJ): -40 to +125°C; (7)Max. Power Dissipation (Note 8): 250mW.
Features
LM3480IM3-5.0 features: (1)3.3, 5, 12, and 15V versions available; (2)Packaged in the tiny 3-lead SuperSOT package.

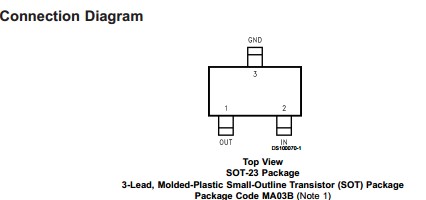

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM3480IM3-5.0 |
National Semiconductor (TI) |
Low Dropout (LDO) Regulators |
Data Sheet |
|
|
||||||||||||
|
LM3480IM3-5.0/NOPB |
National Semiconductor (TI) |
Low Dropout (LDO) Regulators 100MA,QUASI LDO LINEAR VLTG REG |
Data Sheet |
|
|
||||||||||||
