Product Summary

The LM285BYMX-1.2 is a Micropower Voltage Reference Diode. The LM285BYMX-1.2 is micropower 2-terminal band-gap voltage regulator diodes. Operating over a 10μA to 20mA current range, it feature exceptionally low dynamic impedance and good temperature stability. On-chip trimming is used to provide tight voltage tolerance. Since the LM285BYMX-1.2 band-gap reference uses only transistors and resistors, low noise and good long term stability result.

Parametrics

LM285BYMX-1.2 absolute maximum ratings: (1)Reverse Current: 30mA; (2)Forward Current: 10mA; (3)Operating Temperature Range: -40℃ to +85℃; (4)ESD Susceptibility: 2kV; (5)Storage Temperature: -55℃ to +150℃; (6)Soldering Information: 260℃; (7)Vapor phase (60 sec.): 215℃; (8)Infrared (15 sec.): 220℃.

Features

LM285BYMX-1.2 features: (1)±`% and 2% Initial Tolerance; (2)Operating Current of 10μA to 20mA; (3)1Ω Dynamic Impedance; (4)Low Temperature Coefficient; (5)Low Voltage Reference-1.235V; (6)2.5V Device and Adjustable Device Also Available; (7)LM185-2.5 Series and LM185 Series, respectively.

Diagrams

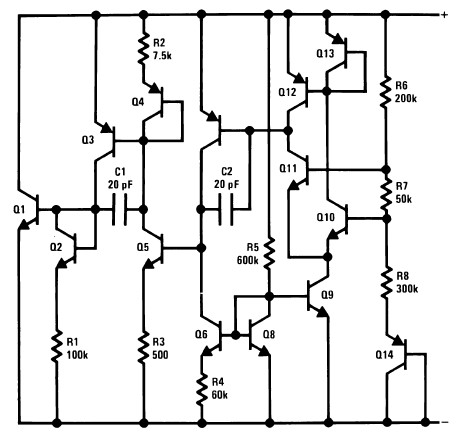

LM285BYMX-1.2 block diagram
