The LM285BXM-1.2 is a Micropower Voltage Reference Diode. The LM285BXM-1.2 is micropower 2-terminal band-gap voltage regulator diodes. Operating over a 10 μA to 20 mA current range, they feature exceptionally low dynamic impedance and good temperature stability. On-chip trimming is used to provide tight voltage tolerance. Since the LM285BXM-1.2 band-gap reference uses only transistors and resistors, low noise and good long term stability result. Careful design of the LM285BXM-1.2 has made the device exceptionally tolerant of capacitive loading, making it easy to use in almost any reference application. The wide dynamic operating range allows its use with widely varying supplies with excellent regulation. The extremely low power drain of the LM185-1.2 makes it useful for micropower circuitry. This voltage reference can be used to make portable meters, regulators or general purpose analog circuitry with battery life approaching shelf life. Further, the wide operating current allows it to replace older references with a tighter tolerance part.

Parametrics

LM285BXM-1.2 absolute maximum ratings: (1)Reverse Current: 30 mA; (2)Forward Current: 10 mA; (3)Operating Temperature Range: -40℃ to +85℃.

Features

LM285BXM-1.2 features: (1)±4 mV (±0.3%) max. initial tolerance (A grade); (2)Operating current of 10 μA to 20 mA; (3)0.6W max dynamic impedance (A grade); (4)Low temperature coefficient; (5)Low voltage reference—1.235V; (6)2.5V device and adjustable device also available; (7)LM185-2.5 series and LM185 series, respectively.

Diagrams

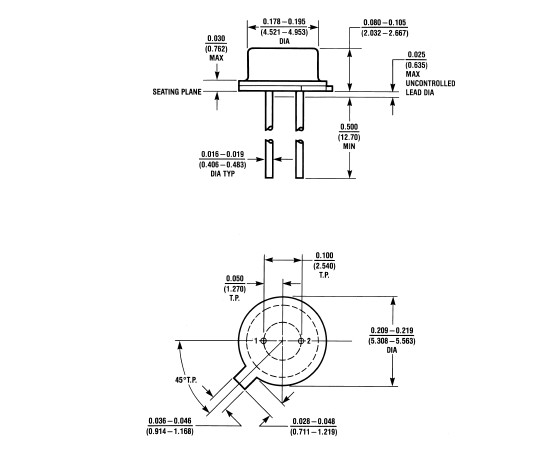

LM285BXM-1.2 dimension
