Product Summary
The LM211H/883 is a voltage comparator that has input currents nearly a thousand times lower than devices like the LM106 or LM710. The LM211H/883 also designed to operate over a wider range of supply voltages: from standard ±15V op amp supplies down to the single 5V supply used for IC logic. The LM211H/883 output is compatible with RTL, DTL and TTL as well as MOS circuits. Further, the LM211H/883 can drive lamps or relays, switching voltages up to 50V at currents as high as 50 mA.
Parametrics
LM211H/883 absolute maximum ratings: (1)Total Supply Voltage (V84): 36V; (2)Output to Negative Supply Voltage (V74): 40V; (3)Ground to Negative Supply Voltage (V14): 30V; (4)Differential Input Voltage: ±30V; (5)Input Voltage (Note 13): ±15V; (6)Power Dissipation (Note 14): 500 mW; (7)ESD Rating (Note 19): 300V; (8)Output Short Circuit Duration: 10 sec; (9)Operating Temperature Range: 0 to 70°C; (10)Storage Temperature Range: -65°C to 150°C; (11)Lead Temperature (soldering, 10 sec): 260°C; (12)Voltage at Strobe Pin: V+-5V; (13)Soldering Information Dual-In-Line Package Soldering (10 seconds): 260°C; (14)Small Outline Package Vapor Phase (60 seconds): 215°C; (15)Small Outline Package Infrared (15 seconds): 220°C.
Features
LM211H/883 features: (1)Operates from single 5V supply; (2)Input current: 150 nA max. over temperature; (3)Offset current: 20 nA max. over temperature; (4)Differential input voltage range: ±30V; (5)Power consumption: 135 mW at ±15V.

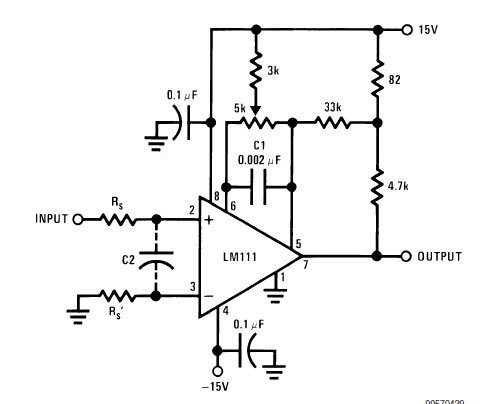

Diagrams
