Product Summary

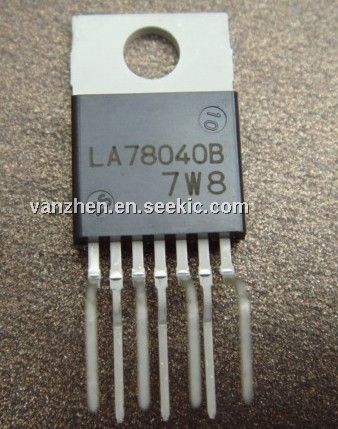

The LA78040 is a vertical deflection output IC for high image quality TV and CRT displays that supports the use of a bus control system signal-processing IC. The sawtooth waveform from the bus control system signal-processing IC can directly drive the deflection yoke (including the DC component). Color TV vertical deflection system adjustment functions can be controlled over a bus system by connecting the LA78040 to a Sanyo LA768X series or LA769XX series bus control system signal-processing IC. Since the LA78040 provides a maximum deflection current of 1.7Ap-p, it is optimal for small and medium size CRTs.
Parametrics
LA78040 absolute maximum ratings: (1)Pump-up block supply voltage +B2 max: 34 V; (2)Output block supply voltage +B6 max: 70 V; (3)Allowable power dissipation Pd max Mounted on an arbitrarily large heat sink.: 9 W; (4)Deflection output current I5 max -1.4 to +1.4 Ap-o; (5)Thermal resistance θj-c: 3℃/W; (6)Operating temperature Topr: -20 to +85℃; (7)Storage temperature Tstg: -40 to +150℃.
Features
LA78040 features: (1)Built-in pump-up circuit for low power dissipation; (2)Vertical output circuit; (3)Thermal protection circuit.
Diagrams
