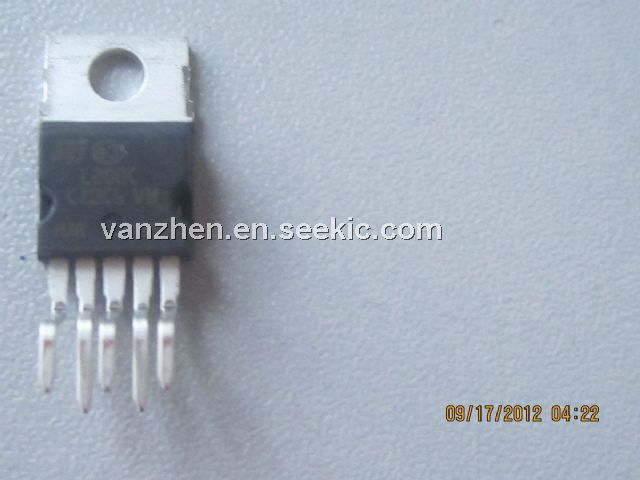

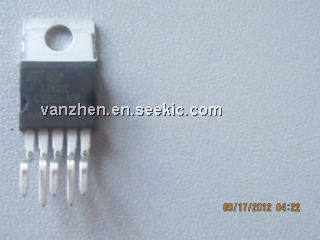

L200CV

L200CV, adjustable voltage and current regulator, TO, 2.85V, 2A, STMicroelectronics

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.69~0.76 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.76 / Piece
1000 ~ 10000 :	0.72 / Piece
10000 ~ 100000 :	0.69 / Piece

PartNumber:: L200CV

Brand:: STMicroelectronics - ST | Pack: TO | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-07

From Other Seller

Part Number:L200CV
US $0.69 - 0.76
IC/L200CV

US $2.20 - 3.32 / Piece
(0) Remove
Quantity:

piece

Product Summary

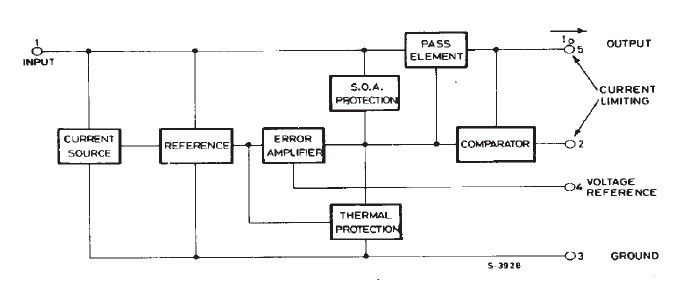

The L200CV is an adjustable voltage and current regulator. The L200CV is a monolithic integrated circuit for voltage and current programmable regulation. The L200CV is available in Pentawatt[ package or 4-lead TO-3 metalcase.Current limiting, powerlimiting, thermal shutdown and input overvoltage protection (up to 60 V) make the L200CV virtually blow-out proof. The L200CV can be used to replace fixed voltage regulators when high output voltage precision is required and eliminates the need to stock a range of fixed voltage regulators.

Parametrics

L200CV absolute maximum ratings: (1)DC Input Voltage: 40 V; (2)Peak Input Voltage (10 ms): 60 V; (3)Dropout Voltage: 32 V; (4)Output Current: internally limited; (5)Power Dissipation: internally limited; (6)Storage Temperature: -55 to 150 ℃; (7)Operating Junction Temperature: -25 to 150 ℃.

Features

L200CV features: (1)adjustable output current up to 2 A (guaranteed up to Tj = 150 ℃); (2)adjustable output voltage down to 2.85 V; (3)input overvoltage protection (UP TO 60 V, 10 ms); (4)short circuit protection; (5)output transistors.O.A.protection; (6)thermal overload protection; (7)low bias current on regulation pin; (8)low standby current drain.
