Product Summary
The KA2803B is an Earth Leakage Detector. The KA2803B is designed for use in earth leakage circuit interrupters, for stable operation of the AC line in breakers. The input of the differential amplifier is connected to the secondary coil of ZCT (Zero Current Transformer). The amplified output of differential amplifier is integrated at external capacitor to gain adequate time delay that is specified in KSC4613. The level comparator generates high level when earth leakage current is greater than the fixed level.
Parametrics
KA2803B absolute maximum ratings: (1)Supply Voltage: 20 V; (2)Supply Current: 8 mA; (3)Power Dissipation: 300 mW; (4)Lead Temperature (Soldering 10sec): 260 ℃; (5)Operating Temperature: - 25 to +80 ℃; (6)Storage Temperature: - 65 to +150 ℃.
Features
KA2803B features: (1)Low Power Consumption PD =5mW, 100V/200V; (2)Built-in Voltage Regulator; (3)High Gain Differential Amplifier; (4)Low External Part Count; (5)DIP Package (8-DIP), High Packing Density; (6)High Noise Immunity, Large Surge Margin; (7)Super Temperature Characteristic of Input Sensitivity; (8)Wide Operating Temperature Range (TA = -25℃ to +80℃); (9)Operation from 12 to 20V Input.

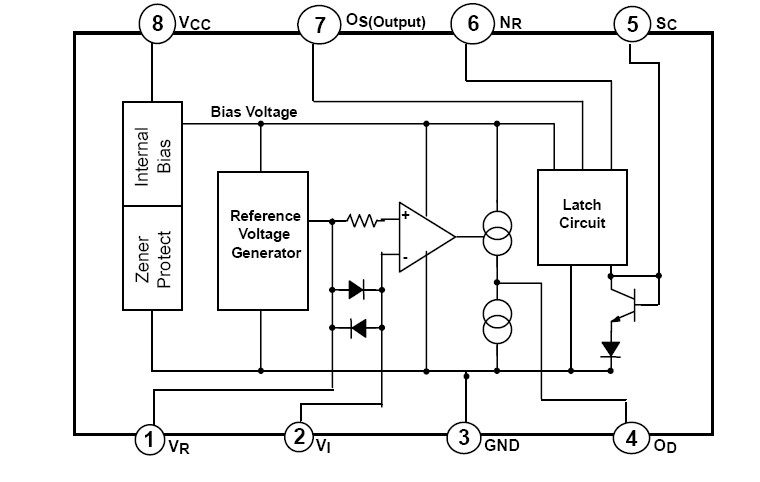

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 KA2803B |
Fairchild Semiconductor |
Comparator ICs Earth Leak Detector |
Data Sheet |
|
|
||||||||||||
|
KA2803B_NL |
Fairchild Semiconductor |
Comparator ICs Earth Leak Detector |
Data Sheet |
Negotiable |
|
||||||||||||
|
KA2803BDTF |
Fairchild Semiconductor |
Comparator ICs Earth Leak Detector |
Data Sheet |
|
|
||||||||||||
|
KA2803BD |
Fairchild Semiconductor |
Comparator ICs Earth Leak Detector |
Data Sheet |
Negotiable |
|
||||||||||||
