ISO722DR

digital isolator, 150 Mbps, ±2 kV, ±15 mA, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: ISO722DR

Brand:: Texas Instruments - TI | Pack: SOIC | D/C: 12+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-24

From Other Seller

Part Number:ISO722DR
US $0.30 - 0.50
Quantity:

piece

Product Summary

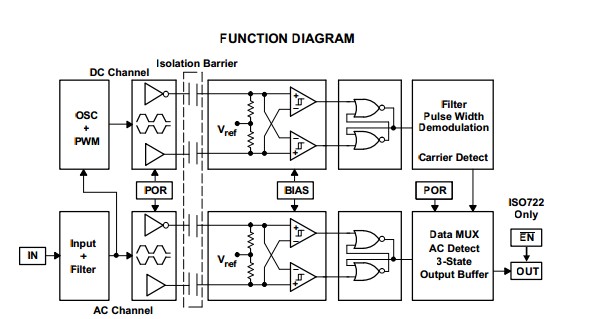

The ISO722DR is a digital isolator with a logic input and output buffer separated by a silicon oxide (SiO2) insulation barrier. This barrier provides galvanic isolation of up to 4000 V. Used in conjunction with isolated power supplies, the ISO722DR prevents noise currents on a data bus or other circuits from entering the local ground, and interfering with or damaging sensitive circuitry. A binary input signal is conditioned, translated to a balanced signal, then differentiated by the capacitive isolation barrier. Across the isolation barrier, a differential comparator receives the logic transition information, then sets or resets a flip-flop and the output circuit accordingly. A periodic update pulse is sent across the barrier to ensure the proper dc level of the output. If this dc-refresh pulse is not received for more than 4 µs, the input is assumed to be unpowered or not being actively driven, and the failsafe circuit drives the output to a logic high state. Applications include Computer Peripheral Interface, Servo Control Interface and Data Acquisition.

Parametrics

ISO722DR absolute maximum ratings: (1)Supply voltage: -0.5 V to 6 V; (2)Voltage at IN, OUT, or EN terminal: -5 V to 6 V; (3)Output Current: ±15 mA; (4)Maximum junction temperature: 170℃; (5)Electrostatic discharge-Human Body Model: ±2 kV; (6)Electrostatic discharge-Charged Device Model: ±1 kV.
