ISL97656IRTZ-TK

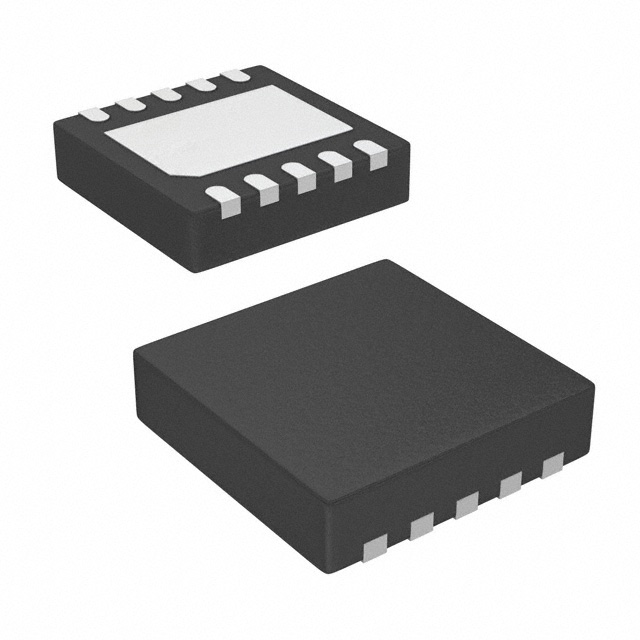

ISL97656IRTZ-TK, Integrated 4A Switch PWM Step-Up Regulator, DFN, 6V, 4A, Intersil Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: ISL97656IRTZ-TK

Brand:: Intersil Corporation - Intersil | Pack: DFN | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-31

From Other Seller

Part Number:ISL97656IRTZ-TK
US $0.30 - 0.50
Quantity:

piece

Product Summary

The ISL97656IRTZ-TK is an Integrated 4A Switch PWM Step-Up Regulator. The ISL97656IRTZ-TK is a high frequency, high efficiency step-up voltage regulator operated at constant frequency PWM mode. With an internal 4.0A, 120mΩ MOSFET, it can deliver up to 2A output current at over 90% efficiency. The selectable 640kHz and 1.2MHz allows smaller inductors and faster transient response. An external compensation pin gives the user greater flexibility in setting frequency compensation allowing the use of low ESR Ceramic output capacitors. When shut down, it draws <1μA of current and can operate down to 2.3V input supply. These features along with 1.2MHz switching frequency makes it an ideal device for portable equipment and TFT-LCD displays. The ISL97656IRTZ-TK is available in a 10 Ld TDFN package with a maximum height of 1.1mm. The device is specified for operation over the full -40℃ to +85℃ temperature range. The applications of the ISL97656IRTZ-TK include TFT-LCD Displays, DSL Modems, PCMCIA Cards, Digital Cameras, GSM/CDMA Phones, Portable Equipment, Handheld Devices.

Parametrics

ISL97656IRTZ-TK absolute maximum ratings: (1)LX to GND: 26V; (2)IN to GND: 6.5V; (3)COMP, FB, EN, SS, FREQ to GND: -0.3V to (IN +0.3V).

Features

ISL97656IRTZ-TK features: (1)>90% Efficiency; (2)4.0A, 120mΩ Power MOSFET; (3)2.3V to 6.0V Input; (4)Up to 24V Output; (5)640kHz/1.2MHz Switching Frequency Selection; (6)Adjustable Soft-Start; (7)Internal Thermal Protection; (8)0.8mm Max Height 10 Ld TDFN Package; (9)Pb-Free (RoHS Compliant); (10)Halogen Free.
