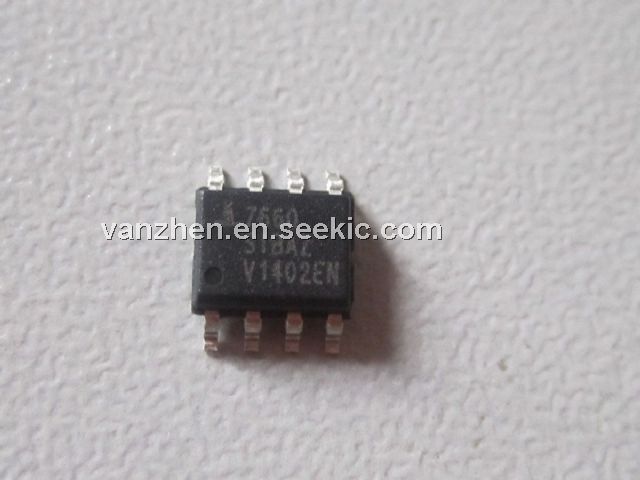

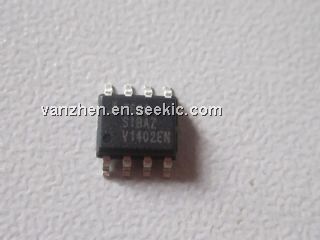

ICL7660SIBAZT

ICL7660SIBAZT, Super Voltage Converter, SOIC, 13V, 20uA, Intersil Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.70~0.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	0.80 / Piece
100 ~ 1000 :	0.75 / Piece
1000 ~ 100000 :	0.70 / Piece

PartNumber:: ICL7660SIBAZT

Brand:: Intersil Corporation - Intersil | Pack: SOIC | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-13

From Other Seller

Part Number:ICL7660SIBAZT
US $0.70 - 0.80
Quantity:

piece

Product Summary

The ICL7660SIBAZT is a Super Voltage Converter. It is a monolithic CMOS voltage conversion IC that guarantees significant performance advantages over other similar devices. The ICL7660SIBAZT is a direct replacement for the industry standard ICL7660 offeringan extended operating supply voltage range up to 12V, with lower supply current. No external diode is needed for the ICL7660S. In addition, a Frequency Boost pin has been incorporated to enable the user to achieve lower output impedance despite using smaller capacitors. The applications of the ICL7660SIBAZT include Simple Conversion of +5V to ±5V Supplies, Voltage Multiplication VOUT = ±nVIN, Negative Supplies for Data Acquisition Systems and instrumentation, RS232 Power Supplies, Supply Splitter, VOUT = ±VS/2.

Parametrics

ICL7660SIBAZT absolute maximum ratings: (1)Supply Voltage: +13.0V; (2)LV and OSC Input Voltage (Note 3) V+＜5.5V : -0.3V to V+ + 0.3V; (3)V+＞ 5.5V: V+ -5.5V to V+ +0.3V; (4)Current into LV (Note 3) V+＞3.5V: 20μA; (5)Output Short Duration VSUPPLY ≤ 5.5V: Continuous; (6)Storage Temperature Range: -65 to 150℃.

Features

ICL7660SIBAZT features: (1)Guaranteed Lower Max Supply Current for All Temperature Ranges; (2)Wide Operating Voltage Range 1.5V to 12V; (3)100% Tested at 3V; (4)No External Diode Over Full Temperature and Voltage Range; (5)Boost Pin (Pin 1) for Higher Switching Frequency; (6)Guaranteed Minimum Power Efficiency of 96%; (7)Improved Minimum Open Circuit Voltage Conversion Efficiency of 99%; (8)Improved SCR Latchup Protection; (9)Simple Conversion of +5V Logic Supply to ?V Supplies; (10)Simple Voltage Multiplication VOUT = (-)nVIN; (11)Easy to Use - Requires Only 2 External Non-Critical Passive Components; (12)Improved Direct Replacement for Industry Standard ICL7660 and Other Second Source Devices; (13)Pb-Free Plus Anneal Available (RoHS Compliant).
