Product Summary
The HMC574MS8ETR is a low-cost SPDT switch in 8-lead MSOP packages for use in transmit/receive applications which require very low distortion at high incident power levels. The device can control signals from DC to 3.0 GHz and is especially suited for Cellular/3G infrastructure, WiMAX and WiBro applications with only 0.3 dB typical insertion loss. The design provides 5 watt power handling performance and +65 dBm third order interceptat +8 Volt bias. Control inputs A & B are compatible with CMOS and some TTL logic families. These products are form, it and function replacements for HMC574MS8ETR while offering superior electrical performance.
Parametrics
HMC574MS8ETR absolute maximum ratings: (1)Bias Voltage Range (Vdd): -0.2 to +12 Vdc; (2)Control Voltage Range (A & B): -0.2 to +Vdd Vdc; (3)Hot Switching Power Level: 39 dBm; (4)Channel Temperature: 150℃; (5)Continuous Pdiss: 0.65W; (6)Thermal Resistance: 100℃/W; (7)Storage Temperature: -65 to +150℃; (8)Operating Temperature: -40 to +85℃.
Features
HMC574MS8ETR features: (1)Low Insertion Loss: 0.3 dB; (2)High Third Order Intercept: +65 dBm; (3)Isolation: 30 dB; (4)Single Positive Supply: +3 to +10V; (5)SMT Package: MSOP8.

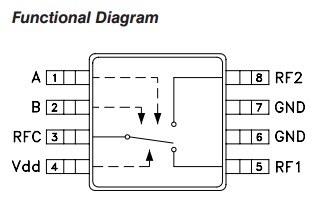

Diagrams
