Product Summary

The HMC472LP4 is a broadband 6-bit GaAs IC digital attenuator in a low cost leadless surface mount package. This single positive control line per bit digital attenuator incorporates off chip AC ground capacitors for near DC operation, making it suitable for a wide variety of RF and IF applications. Covering DC to 3.0 GHz, the insertion loss is less than 2.0 dB typical. The attenuator bit values are 0.5 (LSB), 1, 2, 4, 8, and 16 dB for a total attenuation of 31.5 dB. Attenuation accuracy is excellent at ± 0.5 dB typical step error with an IIP3 of +45 dBm. Six TTL/CMOS control inputs are used to select each attenuation state. A single Vdd bias of +5V is required. Applications include ISM, MMDS, WLAN, WiMAX, Microwave Radio & VSAT and Test Equipment & Sensors.

Parametrics

HMC472LP4 absolute maximum ratings: (1)RF Input Power (DC - 3.0 GHz): +27 dBm; (2)Control Voltage Range (V1 to V6): -1V to Vdd +1V; (3)Bias Voltage (Vdd): +7.0 Vdc; (4)Channel Temperature: 150℃; (5)Continuous Pdiss: 0.5 W; (6)Thermal Resistance: 130℃/W; (7)Storage Temperature: -65 to +150℃; (8)Operating Temperature: -40 to +85℃.

Features

HMC472LP4 features: (1)0.5 dB LSB Steps to 31.5 dB; (2)Single Control Line Per Bit; (3)TTL/CMOS Compatible Control; (4)+/- 0.5 dB Typical Step Error; (5)Single +5V Supply; (6)4 mm x 4 mm x 1 mm SMT Package.

Diagrams

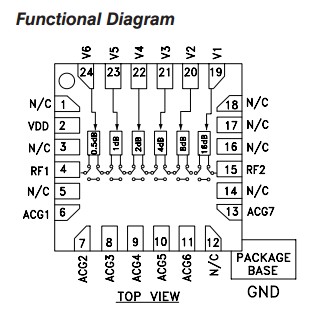

HMC472LP4 Functional Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HMC472LP4
HMC472LP4

Other


Data Sheet

Negotiable
HMC472LP4E
HMC472LP4E


ATTENUATOR DGTL 6BIT 24QFN

Data Sheet

0-1: $4.31
1-10: $3.87
10-25: $3.52
25-100: $3.19
100-250: $2.92
