Product Summary

The HMC470LP3 is a broadband 5-bit GaAs IC digital attenuator in low cost leadless surface mount packages. This single positive control line per bit digital attenuator incorporates off chip AC ground capacitors for near DC operation, making it suitable for a wide variety of RF and IF applications. Covering DC to 3.0 GHz, the insertion loss is less than 1.5 dB typical. The attenuator bit values are 1 (LSB), 2, 4, 8, and 16 dB for a total attenuation of 31 dB. Attenuation accuracy is excellent at ± 0.3 dB typical step error with an IIP3 of +45 dBm. Five TTL/CMOS control inputs are used to select each attenuation state. A single Vdd bias of +5V is required. Applications include Cellular, ISM, MMDS, WLAN, WiMAX, Microwave Radio & VSAT and Test Equipment and Sensors.

Parametrics

HMC470LP3 absolute maximum ratings: (1)RF Input Power (DC-3.0 GHz): +27 dBm; (2)Control Voltage Range (V1 to V5): -1V to Vdd +1V; (3)Bias Voltage (Vdd): +7.0 Vdc; (4)Channel Temperature: 150℃; (5)Continuous Pdiss: 0.5 W; (6)Thermal Resistance: 130℃/W; (7)Storage Temperature: -65 to +150℃; (8)Operating Temperature: -40 to +85℃.

Features

HMC470LP3 features: (1)1 dB LSB Steps to 31 dB; (2)Single Control Line Per Bit; (3)TTL/CMOS Compatible Control; (4)+/- 0.3 dB Typical Step Error; (5)Single +5V Supply; (6)3 x 3 mm SMT Package.

Diagrams

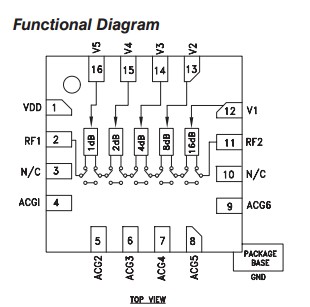

HMC470LP3 Functional Diagram
