Product Summary

The HI1-0201HS-5 is a monolithic CMOS Analog Switch featuring very fast switching speeds and low ON resistance. The HI1-0201HS-5 consists of four independently selectable SPST switches and is pin compatible with the industry standard HI-201 switch. The applications of the HI1-0201HS-5 include High Speed Multiplexing, High Frequency Analog Switching, Sample and Hold Circuits, Digital Filters, Operational Amplifier Gain Switching Networks, Integrator Reset Circuits.

Parametrics

HI1-0201HS-5 absolute maximum ratings: (1)Supply Voltage (V+ to V-): 36V; (2)Digital Input Voltage: (V+) +4V to (V-) -4V; (3)Analog Input Voltage (One Switch): (V+) +2.0V to (V-) -2.0V; (4)Peak Current, S or D (Pulse 1ms, 10% Duty Cycle Max): 50mA; (5)Continuous Current Any Terminal (Except S or D): 25mA.

Features

HI1-0201HS-5 features: (1)Fast Switching Times tON: 30ns; tOFF: 40ns; (2)Low "on" Resistance: 30Ω; (3)Pin Compatible with Standard HI-201; (4)Wide Analog Voltage Range (±15V Supplies): ±15V; (5)Low Charge Injection (±15V Supplies): 10pC; (6)TTL Compatible; (7)Symmetrical Switching Analog Current Range: 80mA.

Diagrams

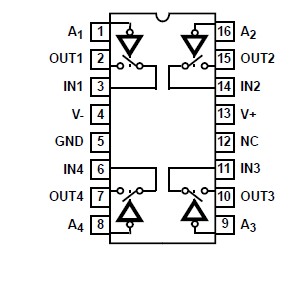

HI1-0201HS-5 Pin Configuration
