(Hong Kong)
Product Summary
● Small and for microwave oven
● 20A switching capability
● 1.5HP 250VAC approved by UL standard
● 5kV impulse withstand voltage
(between coil and contacts)
● PCB & QC layouts
● Flux proofed types available
● Environmental friendly product (RoHS
compliant)

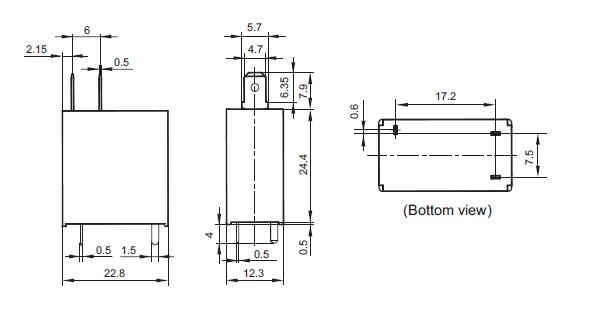

● Outline Dimensions: (22.8 x 12.3 x 24.4) mm
Parametrics
HF25F Absolute maximum ratings: (1)insulation resistance: 1000MΩ; (2)Operate time max. : 15ms; (3)release time max. : 5ms; (4)ambient temperature: -40℃ to 85℃; (5)switching voltage: 30V to 250V; (6)Switching current: 20A.
Features
HF25F features: (1)small and for microwave oven; (2)20A switching capability; (3)1.5HP 250VAC approved by UL standard; (4)5kV INPULSE withstand voltage ( between coil and contacts); (5)PCB & QC layouts; (6)environmental friendly product (RoHS compliant); (7)Outline dimensions: (22.8 × 12.3 × 24.4) mm.
Diagrams
